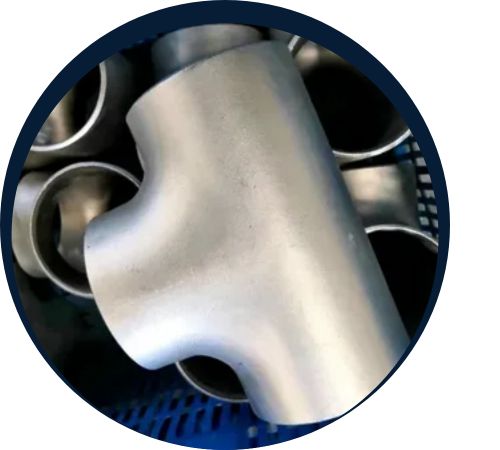

Jinay Metals is a trusted manufacturer and supplier of high-quality Reducing Outlet Tees in Dubai, UAE, serving diverse industrial sectors with precision-engineered piping solutions. Known for superior craftsmanship and reliable performance, our products are designed to ensure efficient flow distribution and long-lasting durability in demanding environments. With a strong commitment to international quality standards, advanced manufacturing technology, and timely delivery, Jinay Metals provides dependable solutions for oil & gas, construction, plumbing, and HVAC applications. Our Reducing Outlet Tees are available in various sizes, materials, and specifications to meet the unique needs of every project across the UAE and beyond.

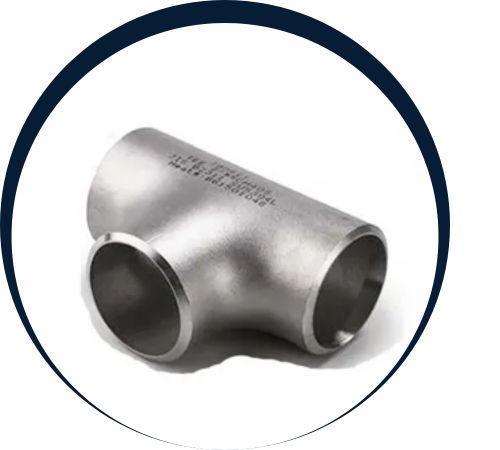

Reducing Outlet Tees are typically manufactured from high-grade materials such as carbon steel, stainless steel, alloy steel, and duplex steel, ensuring excellent corrosion resistance and durability. Their composition often includes elements like chromium, nickel, and molybdenum for enhanced strength and performance. These fittings exhibit strong mechanical properties, including high tensile strength, superior yield strength, and good hardness levels, making them suitable for high-pressure and high-temperature applications. Designed for reliability, Reducing Outlet Tees maintain structural integrity and provide leak-free flow distribution in critical piping systems.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Reducing Tee and Crosses, Fitting Outlet Reducing Tee and Crosses

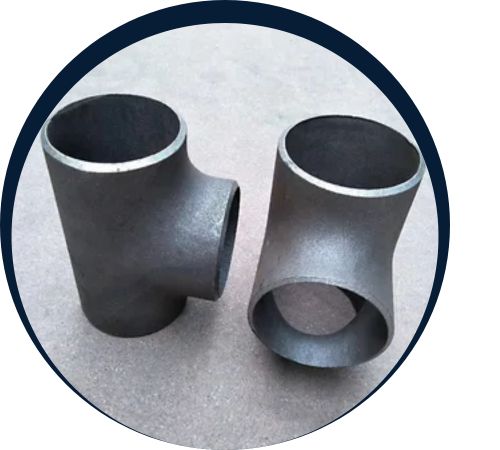

Reducing Outlet Tees are commonly made from materials such as stainless steel, carbon steel, and various alloys, including Duplex and Super Duplex, depending on the application’s specific requirements. These materials offer excellent corrosion resistance, strength, and durability. The mechanical properties vary with the material used but generally include high tensile strength (500-900 MPa), yield strength (250-700 MPa), and elongation (20-30%). Reducing Outlet Tees are designed to withstand high-pressure, high-temperature environments, providing reliable performance in fluid and gas transmission system
| Nominal Pipe Size (NPS) | DN | Outlet Diameter at Bevel | Center- to-End | ||
| Run | Outlet | Run.C | Outlet. M[Notes(1)] | ||
| 1/2*1/2*3/8 | 15*15*10 | 21.3 | 17.3 | 25 | 25 |
| 1/2*1/2*1/4 | 15*15*8 | 21.3 | 13.7 | 25 | 25 |
| 3/4*3/4*1/2 | 20*20*15 | 26.7 | 21.3 | 29 | 29 |
| 3/4*3/4*3/8 | 20*20*10 | 26.7 | 17.3 | 29 | 29 |
| 1*1*3/4 | 25*25*20 | 33.4 | 26.7 | 38 | 38 |
| 1*1*1/2 | 25*25*15 | 33.4 | 21.3 | 38 | 38 |
| 1-1/4*1-1/4*1 | 32*32*25 | 42.2 | 33.4 | 48 | 48 |
| 1-1/4*1-1/4*3/4 | 32*32*20 | 42.2 | 26.7 | 48 | 48 |
| 1-1/4*1-1/4*1/2 | 32*32*15 | 42.2 | 21.3 | 48 | 48 |
| 1-1/2*1-1/2*1-1/4 | 40*40*32 | 48.3 | 42.2 | 57 | 57 |
| 1-1/2*1-1/2*1 | 40*40*25 | 48.3 | 33.4 | 57 | 57 |
| 1-1/2*1-1/2*3/4 | 40*40*20 | 48.3 | 26.7 | 57 | 57 |
| 1-1/2*1-1/2*1/2 | 40*40*15 | 48.3 | 21.3 | 57 | 57 |
| 2*2*1-1/2 | 50*50*40 | 60.3 | 48.3 | 64 | 60 |
| 2*2*1-1/4 | 50*50*32 | 60.3 | 42.2 | 64 | 57 |
| 2*2*1 | 50*50*25 | 60.3 | 33.4 | 64 | 51 |
| 2*2*3/4 | 50*50*20 | 60.3 | 73.0 | 64 | 44 |
| 2-1/2*2-1/2*2 | 65*65*50 | 73.0 | 60.3 | 76 | 70 |
| 2-1/2*2-1/2*1-1/2 | 65*65*40 | 73.0 | 48.3 | 76 | 67 |
| 2-1/2*2-1/2*1-1/4 | 65*65*32 | 73.0 | 42.2 | 76 | 64 |
| 2-1/2*2-1/2*1 | 65*65*25 | 73.0 | 88.9 | 76 | 57 |
| 3*3*2-1/2 | 80*80*65 | 88.9 | 73.0 | 86 | 83 |
| 3*3*2 | 80*80*50 | 88.9 | 60.3 | 86 | 76 |
| 3*3*1-1/2 | 80*80*40 | 88.9 | 48.3 | 86 | 73 |
| 3*3*1-1/4 | 80*80*32 | 88.9 | 101.6 | 86 | 70 |
| 3-1/2*3-1/2*3 | 90*90*80 | 101.6 | 88.9 | 95 | 92 |
| 3-1/2*3-1/2*2-1/2 | 90*90*65 | 101.6 | 73.0 | 95 | 89 |
| 3-1/2*3-1/2*2 | 90*90*50 | 101.6 | 60.3 | 95 | 83 |
| 3-1/2*3-1/2*1-1/2 | 90*90*40 | 101.6 | 48.3 | 95 | 79 |
| 4*4*3-1/2 | 100*100*90 | 114.3 | 101.6 | 105 | 102 |
| 4*4*3 | 100*100*80 | 114.3 | 88.9 | 105 | 98 |
| 4*4*2-1/2 | 100*100*65 | 114.3 | 73.0 | 105 | 95 |
| 4*4*2 | 100*100*50 | 114.3 | 60.3 | 105 | 89 |
| 4*4*1-1/2 | 100*100*40 | 114.3 | 48.3 | 105 | 86 |
| 5*5*4 | 125*125*100 | 141.3 | 114.3 | 124 | 117 |
| 5*5*3-1/2 | 125*125*90 | 141.3 | 101.6 | 124 | 114 |
| 5*5*3 | 125*125*80 | 141.3 | 88.9 | 124 | 111 |
| 5*5*2-1/2 | 125*125*65 | 141.3 | 73.6 | 124 | 108 |
| 5*5*2 | 125*125*50 | 141.3 | 60.3 | 124 | 105 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Reducing Outlet Tees from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Reducing Outlet Tees in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Reducing Outlet Tees to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Reducing Outlet Tees are widely used in piping systems to efficiently connect pipes of different diameters while maintaining smooth flow distribution. They are essential in industries such as oil and gas, petrochemicals, chemical processing, power generation, and water treatment. These fittings help create branch connections in high-pressure and high-temperature environments, ensuring reliable performance and leak-free operation. Reducing Outlet Tees are also commonly used in HVAC systems, plumbing networks, fire protection lines, and marine applications. Their versatility, durability, and compatibility with various pipe materials make them an ideal choice for complex industrial and commercial piping installations.
