Equal/ Unequal/ Reducing Cross Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a reputable manufacturer and distributor of the quality Equal, Unequal and Reducing Cross fittings in Dubai, UAE. We have specified our products through excellent grade materials to make them corrosive and strong, and long lasting. Our crosses were made to be efficient in the distribution of fluids that are carried in piping systems and are commonly used in oil, gas, chemical and power industries. Jinay Metals has been a loyal provider of industrial pipe fittings with a solid reputation as a brand that is both quality-focused and innovative with high customer satisfaction.

Stainless Steel Unequal Cross Price List in Dubai, Copper Nickel Unequal Cross Distributor in Abu Dhabi, Super Duplex Steel Reducing Cross Supplier in Sharjah, Buttweld Reducing Pipe Cross Distributor in Jebel Ali, Butt Weld Reducing Cross Sizes in mm, Nickel Alloy Unequal Cross Manufacturer in Dubai, Carbon Steel Unequal Cross Thickness, Super Duplex Steel Reducing Cross Supplier in Jebel Ali, SMO 254 Welded Reducing Cross Exporter in Al Ain, Hastelloy Unequal Cross Supplier in Ajman

Equal, Unequal, and Reducing Cross fittings are produced from high–quality materials such as carbon steel, stainless steel, and alloy steel. The chemical composition of these fittings generally contains Nickel, molybdenum, iron, and chromium. The fittings are corrosion resistant and possess good mechanical performance differing in models and compositions. The tensile strength of these fittings ranges from 485 MPa to 750 MPa while the yield strength ranges from 170 to 450 MPa and possess reasonable elongation and toughness. The fittings are high quality, leak–free, and reliable when installed for high pressure and high temperature condition applications of pipe and fluid distribution in industrial systems.

Equal/ Unequal/ Reducing Cross Specification

Standards : ASME / ANSI – B 16.9, ASTM A403 – ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

Size : 1/2″NB TO 48″NB IN

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type : Seamless / ERW / Welded / Fabricated

Form : Equal Cross, Reducing Cross, Unequal Cross.

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Nickel Alloy Cross in UAE, Duplex Steel Buttweld Reducing Cross Distributor in Ajman, Alloy Steel Reducing Cross Supplier in Al Ain, Copper Nickel Alloy Cross Weight Chart, Incoloy Unequal Cross Exporter in Abu Dhabi, SS Buttweld Reducing Cross Manufacturer in Sharjah, Duplex Steel Unequal Cross Price List in Dubai, Hastelloy Cross Sizes in mm, Monel Reducing Cross Distributor in Sharjah

Why Choose Equal/ Unequal/ Reducing Cross From Jinay Metals?

Choosing Equal/ Unequal/ Reducing Cross from Jinay Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

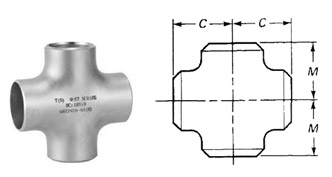

Dimensions Of Equal Cross

Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Center- to-End
Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Run.C	Outlet. M[Notes(1) and (2)]
1/2	15	21.3	25	25
3/4	20	26.7	29	29
1	25	33.4	38	38
1-1/4	32	42.2	48	48
1-1/2	40	48.3	57	57
2	50	60.3	64	64
2-1/2	65	73.0	76	76
3	80	88.9	86	86
3-1/2	90	101.6	95	95
4	100	114.3	105	105
5	125	141.3	124	124
6	150	168.3	143	143
8	200	219.1	178	178
10	250	273.0	216	216
12	300	323.8	254	254
14	350	355.6	279	279
16	400	406.4	305	305
18	450	457	343	343
20	500	508	381	381
22	550	559	419	419
24	600	610	432	432
26	650	660	495	495
28	700	711	521	521
30	750	762	559	559
32	800	813	597	597
34	850	864	635	635
36	900	914	673	673
38	950	965	711	711
40	1000	1016	749	749
42	1050	1067	762	711
44	1100	1118	813	762
46	1150	1168	851	800
48	1200	1219	889	838

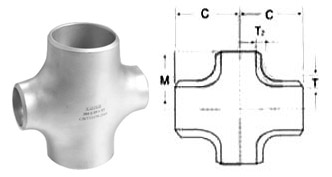

Reducing Cross Dimension

Nominal Diameter		Outside Diameter				Center to End
Nominal Diameter		D1		D2		Center to End
DN	NPS	Series A	Series B	Series A	Series B	C	M
15×15	1/2×1/2	21.3	18	21.3	18	25	25
15×10	1/2×3/8	21.3	18	17.3	14	25	25
15×8	1/2×1/4	21.3	18	13.7	10	25	25
20×20	3/4×3/4	26.9	25	26.9	25	29	29
20×15	3/4×1/2	26.9	25	21.3	18	29	29
20×10	3/4×3/8	26.9	25	17.3	14	29	29
25×25	1×1	33.7	32	33.7	32	38	38
25×20	1×3/4	33.7	32	26.9	25	38	38
25×15	1×1/2	33.7	32	21.3	18	38	38
32×32	1.1/4×1.1/4	42.4	38	42.4	38	48	48
32×25	1.1/4×1	42.4	38	33.7	32	48	48
32×20	1.1/4×3/4	42.4	38	26.9	25	48	48
32×15	1.1/4×1/2	42.4	38	21.3	18	48	48
40×40	1.1/2×1.1/2	48.3	45	48.3	45	57	57
40×32	1.1/2×1.1/4	48.3	45	42.4	38	57	57
40×25	1.1/2×1	48.3	45	33.7	32	57	57
40×20	1.1/2×3/4	48.3	45	26.9	25	57	57
40×15	1.1/2×1/2	48.3	45	21.3	18	57	57
50×50	2×2	60.3	57	60.3	57	64	64
50×40	2×1.1/2	60.3	57	48.3	45	64	60
50×32	2×1.1/4	60.3	57	42.4	38	64	57
50×25	2×1	60.3	57	33.7	32	64	51
50×20	2×3/4	60.3	57	26.9	25	64	44
65×65	2/1/2×2.1/2	73.0	76	73.0	76	76	76
65×50	2/1/2×2	73.0	76	60.3	57	76	70
65×40	2/1/2×1.1/2	73.0	76	48.3	45	76	67
65×32	2/1/2×1.1/4	73.0	76	42.4	38	76	64
65×25	2/1/2×1	73.0	76	33.7	32	76	57
80×80	3×3	88.9	89	88.9	89	86	86
80×65	3×2.1/2	88.9	89	73.0	76	86	83
80×50	3×2	88.9	89	60.3	57	86	76
80×40	3×1.1/2	88.9	89	48.3	45	86	73
80×32	3×1.1/4	88.9	89	42.4	38	86	70
90×90	3.1/2×3.1/2	101.6	–	101.6	–	95	95
90×80	3.1/2×3	101.6	–	88.9	89	95	92
90×65	3.1/2×2.1/2	101.6	–	73.0	76	95	89
90×50	3.1/2×2	101.6	–	60.3	57	95	83
90×40	3.1/2×1.1/2	101.6	–	48.3	45	95	79
100×100	4×4	114.3	108	114.3	108	105	105
100×90	4×3.1/2	114.3	108	101.6	–	105	102
100×80	4×3	114.3	108	88.9	89	105	98
100×65	4×2.1/2	114.3	108	73.0	76	105	95
100×50	4×2	114.3	108	60.3	57	105	89
100×40	4×1.1/2	114.3	108	48.3	45	105	86
125×125	5×5	141.3	133	141.3	133	124	124
125×100	5×4	141.3	133	114.3	108	124	117
125×90	5×3.1/2	141.3	–	101.6	–	124	114
125×80	5×3	141.3	133	88.9	89	124	111
125×65	5×2.1.2	141.3	133	73.0	76	124	108
125×50	5×2	141.3	133	60.3	57	124	105
150×150	6×6	168.3	159	168.3	159	143	143
150×125	6×5	168.3	159	141.3	133	143	137
150×100	6×4	168.3	159	114.3	108	143	130
150×90	6×3.1/2	168.3	–	101.6	–	143	127
150×80	6×3	168.3	159	88.9	89	143	124
150×65	6×2.1/2	168.3	159	73.0	76	143	121
200×200	8×8	219.1	219	219.1	219	178	178
200×150	8×6	219.1	219	168.3	159	178	168
200×125	8×5	219.1	219	141.4	133	178	162
200×100	8×4	219.1	219	114.3	108	178	156
200×90	8×3.1/2	219.1	–	101.6	–	178	152
250×250	10×10	273.0	273	273.0	273	216	216
250×200	10×8	273.0	273	219.1	219	216	203
250×150	10×6	273.0	273	168.3	159	216	194
250×125	10×5	273.0	273	141.3	133	216	191
250×100	10×4	273.0	273	114.3	108	216	184
300×300	12×12	323.9	325	323.9	325	254	254
300×250	12×10	323.9	325	273.0	273	254	241
300×200	12×8	323.9	325	219.1	219	254	229
300×150	12×6	323.9	325	168.3	159	254	219
300×125	12×5	323.9	325	141.3	133	254	216
350×350	14×14	355.6	377	355.6	377	279	279
350×300	14×12	355.6	377	323.9	325	279	270
350×250	14×10	355.6	377	273.0	273	279	257
350×200	14×8	355.6	377	219.1	219	279	248
350×150	14×6	355.6	377	168.3	159	279	238
400×400	16×16	406.4	426	406.4	426	305	305
400×350	16×14	406.4	426	355.6	377	305	305
400×300	16×12	406.4	426	323.9	325	305	295
400×250	16×10	406.4	426	273.0	273	305	283
400×200	16×8	406.4	426	219.1	219	305	273
400×150	16×6	406.4	426	168.3	159	305	264
450×450	18×18	457	480	457	480	343	343
450×400	18×16	457	480	406.4	426	343	330
450×350	18×14	457	480	355.6	377	343	330
450×300	18×12	457	480	323.9	325	343	321
450×250	18×10	457	480	273.0	273	343	308
450×200	18×8	457	480	219.1	219	343	298
500×500	20×20	508	530	508	530	381	381
500×450	20×20	508	530	457	480	381	368
500×400	20×20	508	530	406.4	426	381	356
500×350	20×20	508	530	355.6	377	381	356
500×300	20×20	508	530	323.9	325	381	346
500×250	20×20	508	530	273.0	273	381	333
500×200	20×20	508	530	219.1	219	381	324

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Equal/ Unequal/ Reducing Cross in Dubai, UAE

Jinay Metals, one of the leading suppliers of Equal/ Unequal/ Reducing Cross in Dubai, UAE, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Copper Nickel Unequal Cross Price List in Ajman, Copper Nickel Equal Cross Supplier in Abu Dhabi, Duplex Steel Equal Cross Dealer in Jebel Ali, Alloy Steel Unequal Cross Supplier in Dubai, Carbon Steel Cross Fittings Exporter in Jebel Ali, Alloy Steel Straight Cross Size Chart, Monel Buttweld Reducing Cross Price in Dubai, Super Duplex Steel Unequal Cross Thickness, Inconel Buttweld Reducing Cross Supplier in Jebel Ali, Carbon Steel Reducing Cross Stockist in UAE, Titanium Unequal Cross Exporter in Ajman

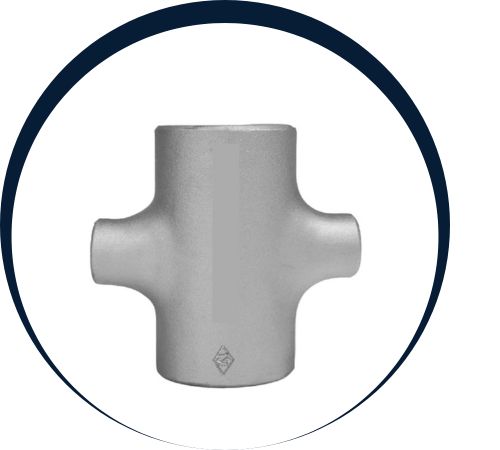

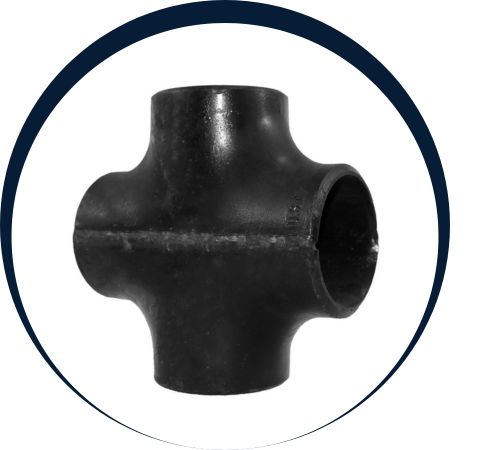

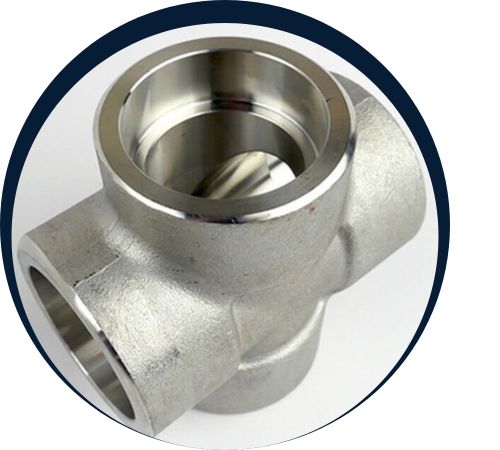

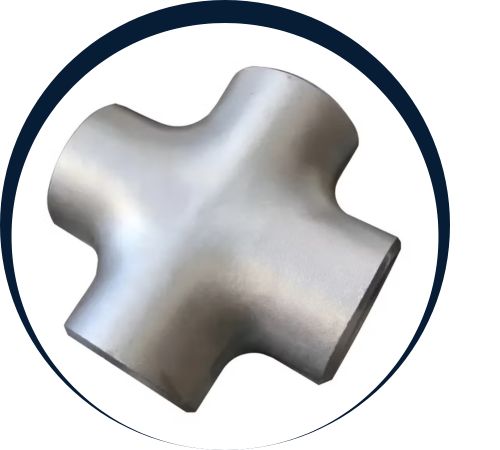

Types of Equal/ Unequal/ Reducing Cross

Are Custom Sizes Available for Equal/ Unequal/ Reducing Cross?

Yes, we provide custom sizes of Equal/ Unequal/ Reducing Cross to match your exact project requirements. Jinay Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

Monel Reducing Cross Size Chart, Stainless Steel Cross Fittings Price in Ajman, Duplex Steel Equal Cross Weight Chart, Alloy Steel Reducing Cross Supplier in Ras Al Khaimah, Incoloy Reducing Cross Stockist in Ajman, Inconel Unequal Cross Supplier in Al Ain, Copper Nickel Unequal Cross Price List in Jebel Ali, Alloy Steel Pipe Fittings Supplier in Sharjah, Alloy Steel Reducer Exporter in Abu Dhabi, Carbon Steel Unequal Cross Exporter in Dubai, Titanium Reducing Cross Exporter in UAE, Monel Buttweld Reducing Cross in Jebel Ali

Equal, Unequal and Reducing Cross fittings are also necessary and relevant to the piping systems to distribute or join fluid flow in various directions. They are popular in oil and gas, petrochemical, power generation, water treatment and shipbuilding industries. Four pipes of the same diameter are connected using equal crosses, different pipes of different sizes are connected using unequal crosses and crosses between increasing and decreasing diameters are used using reducing crosses. These fittings are made to operate under high pressure and high temperature conditions and are thus very durable, anti-corrosive and have dependable service in demanding industrial and commercial processes.
