Concentric Reducer/ Eccentric Reducer Manufacturer, Supplier and Exporter in Dubai, UAE

As a reputable manufacturer and supplier of Concentric and Eccentric Reducers, Jinay Metals delivers world–class quality in Dubai, UAE. Our reducers are precisely manufactured of premium materials for durability, strength, and excellent flow characteristics. The reducers connect pipes of differing diameters to allow for smooth transition of fluid flow and to maximize energy efficiency with reduced pressure drop in piping systems. Commonly found in industrial applications in the oil and gas, chemical and power industries, Jinay Metals provides you with quality products and services you can rely on, all across the UAE.

Copper Nickel Eccentric Reducer Price List in UAE, Copper Nickel Concentric Reducer Supplier in Abu Dhabi, Duplex Steel Concentric Reducer Dealer in Sharjah, Alloy Steel Eccentric Reducer Supplier in Jebel Ali, Carbon Steel Reducer Fittings Exporter in Al Ain, Alloy Steel Straight Reducer Size Chart, Monel Buttweld Concentric Reducer Price in Ajman, Super Duplex Steel Eccentric Reducer Thickness, Inconel Buttweld Concentric Reducer Supplier in Abu Dhabi, Carbon Steel Concentric Reducer Stockist in Ajman, Titanium Eccentric Reducer Exporter in UAE

Concentric and Eccentric Reducers are made from high-grade materials, including stainless steel, carbon steel, and alloy steel. These materials typically consist of iron, chromium, nickel, and molybdenum, and thus do demonstrate excellent durability, corrosion resistance, and strength. The reducers exhibit tensile strengths of 485–750 MPa and yield strengths of 170–450 MPa while demonstrating decent elongation and impact resistance. These reducers are engineered to operate in high-pressure and high-temperature environments, ensuring leak–tight connections, smooth flow of fluids, and longevity in critical industrial piping systems.

Concentric Reducers Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless Pipe Concentric Reducers Size: 1/2″~24″

ERW / Welded / Fabricated Pipe Concentric Reducers Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: Pipe Concentric Reducers Cross, Fitting Concentric Reducers

Eccentric Reducers Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless Pipe Eccentric Reducers Size: 1/2″~24″

ERW / Welded / Fabricated Pipe Eccentric Reducers Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: Pipe Eccentric Reducers Cross, Fitting Eccentric Reducers

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Nickel Alloy Reducer in Dubai, Duplex Steel Buttweld Concentric Reducer Distributor in Sharjah, Alloy Steel Concentric Reducer Supplier in Al Ain, Copper Nickel Alloy Reducer Weight Chart, Incoloy Eccentric Reducer Exporter in Abu Dhabi, SS Buttweld Concentric Reducer Manufacturer in Ras Al Khaimah, Duplex Steel Eccentric Reducer Price List in UAE, Hastelloy Reducer Sizes in mm, Monel Concentric Reducer Distributor in Abu Dhabi

Why Choose Concentric Reducer/ Eccentric Reducer From Jinay Metals?

Choosing Concentric Reducer/ Eccentric Reducer from Jinay Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

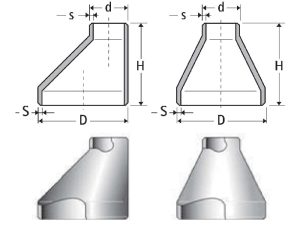

Dimensions Of Concentric Reducer

Code RCD REISO	Ø BIG			Ø SMALL			HEIGHT H mm	THEORETICAL WEIGHT KG
Code RCD REISO	DN	D mm	Thickness S mm	DN	d mm	Thickness s mm	HEIGHT H mm	THEORETICAL WEIGHT KG
27 21	3/4	26.9	2.3	1/2	21.3	2.0	38	0.08
33 21	1	33.7	2.6	1/2	21.3	2.0	50	0.09
33 27	1	33.7	2.6	3/4	26.9	2.3	50	0.09
42 21	1″1/4	42.4	2.6	1/2	21.3	2.0	50	0.12
42 27				3/4	26.9	2.3		0.13
42 33				1	33.7	2.6		0.14
*48 21	1″1/2	48.3	2.6	1/2	21.3	2.0	64	0.18
48 27				3/4	26.9	2.3		0.19
48 33				1	33.7	2.6		0.20
48 42				1″1/4	42.4	2.6		0.20
60 27	2	60.3	2.9	3/4	26.9	2.3	76	0.30
60 33				1	33.7	2.6		0.31
60 42				1″1/4	42.4	2.6		0.32
60 48				1″1/2	48.3	2.6		0.33
76 33	2″1/2	76.1	2.9	1	33.7	2.6	90	0.40
76 42				1″1/4	42.4	2.6		0.47
76 48				1″1/2	48.3	2.6		0.48
76 60				2	60.3	2.6		0.49
89 42	3	88.9	3.2	1″1/4	42.4	2.6	90	0.55
89 48				1″1/2	48.3	2.6		0.61
89 60				2	60.3	2.9		0.62
89 76				2″1/2	76.1	2.9		0.63
114 48	4	114.3	3.6	1″1/2	48.3	2.6	100	0.85
114 60				2	60.3	2.9		0.98
114 76				2″1/2	76.1	2.9		1.00
114 89				3	88.9	3.2		1.02
139 60	5	139.7	4.0	2	60.3	2.9	127	1.60
139 76				2″1/2	76.1	2.9		1.70
139 89				3	88.9	3.2		1.74
139 114				4	114.3	3.6		1.76
*168 76	6	168.3	4.5	2″1/2	76.1	2.9	140	2.60
168 89				3	88.9	3.2		2.70
168 114				4	114.3	3.6		2.82
168 139				5	139.7	4.0		2.94
219 114	8	219.1	6.3	4	114.3	3.6	152	5.03
219 139				5	139.7	4.0		5.12
219 168				6	168.3	4.5		5.18
*273 114	10	273.0	6.3	4	114.3	3.6	178	7.00
*273 139				5	139.7	4.0		7.20
273 168				6	168.3	4.5		7.40
273 219				8	219.1	6.3		7.55
323 168	12	323.9	7.1	6	168.3	4.5	203	11.00
323 219				8	219.1	6.3		11.10
323 273				10	273	6.3		11.20

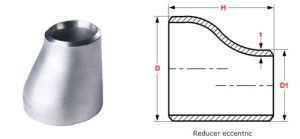

Dimension of Eccentric Reducer

Nominal Diameter		Outside Diameter		End to End
Nominal Diameter		*D1D2**		End to End
DN	NPS	Series A	Series B	H
20×15	3/4×1/2	26.9×21.3	25×18	38
20×10	3/4×3/8	26.9×17.3	25×14	38
25×20	1×3/4	33.7×26.9	32×25	51
25×15	1×1/2	33.7×21.3	32×18	51
32×25	1.1/4×1	42.4×33.7	38×32	51
32×20	1.1/4×3/4	42.4×26.9	38×25	51
32×15	1.1/4×1/2	42.4×21.3	38×18	51
40×32	1.1/2×1.1/4	48.3×42.4	45×38	64
40×25	1.1/2×1	48.3×33.7	45×32	64
40×20	1.1/2×3/4	48.3×26.9	45×25	64
40×15	1.1/2×1/2	48.3×21.3	45×18	64
50×40	2×1.1/2	60.3×48.3	57×45	76
50×32	2×1.1/4	60.3×42.4	57×38	76
50×25	2×1	60.3×33.7	57×32	76
50×20	2×3/4	60.3×26.9	57×25	76
65×50	2.1/2×2	73.0×60.3	76×57	89
65×40	2.1/2×1.1/2	73.0×48.3	76×45	89
65×32	2.1/2×1.1/4	73.0×42.4	76×38	89
65×25	2.1/2×1	73.0×33.7	76×32	89
80×65	3×2.1/2	88.9×73.0	89×76	89
80×50	3×2	88.9×60.3	89×57	89
80×40	3×1.1/2	88.9×48.3	89×45	89
80×32	3×1.1/4	88.9×42.4	89×38	89
90×80	3.1/2×3	101.6×88.9	–	102
90×65	3.1/2×2.1/2	101.6×73.0	–	102
90×50	3.1/2×2	101.6×60.3	–	102
90×40	3.1/2×1.1/2	101.6×48.3	–	102
90×32	3.1/2×1.1/4	101.6×42.4	–	102
100×90	4×3.1/2	114.3×101.6	–	102
100×80	4×3	114.3×88.9	108×89	102
100×65	4×2.1/2	114.3×73.0	108×76	102
100×50	4×2	114.3×60.3	108×57	102
100×40	4×1.1/2	114.3×48.3	108×45	102
125×100	5×4	141.3×114.3	133×108	127
125×90	5×3.1/2	141.3×101.6	–	127
125×80	5×3	141.3×88.9	133×89	127
125×65	5×2.1/2	141.3×73.0	133×76	127
125×50	5×2	141.3×60.3	133×57	127
150×125	6×5	168.3×141.3	159×133	140
150×100	6×5	168.3×114.3	159×108	140
150×90	6×3.1/2	168.3×101.6	–	140
150×80	6×3	168.3×88.9	159×89	140
150×65	6×2.1/2	168.3×73.0	159×76	140
200×150	8×6	219.1×168.3	219×159	152
200×125	8×5	219.1×141.3	219×133	152
200×100	8×4	219.1×114.3	219×108	152
200×90	8×3.1/2	219.1×101.6	–	152
250×200	10×8	273.0×219.1	273×219	178
250×150	10×6	273.0×168.3	273×159	178
250×125	10×5	273.0×141.3	273×133	178
250×100	10×4	273.0×114.3	273×108	178
300×250	12×10	323.9×273.1	325×273	203
300×200	12×8	323.9×219.1	325×219	203
300×150	12×6	323.9×168.3	325×159	203
300×125	12×5	323.9×141.3	325×133	203
350×300	14×12	355.6×323.9	377×325	330
350×250	14×10	355.6×273.0	377×273	330
350×200	14×8	355.6×219.1	377×219	330
350×150	14×6	355.6×168.3	377×159	330
400×350	16×14	406.4×355.6	426×377	356
400×300	16×12	406.4×323.9	426×325	356
400×250	16×10	406.4×273.0	426×273	356
400×200	16×8	406.4×219.1	426×219	356
450×400	18×16	457×406.4	478×426	381
450×350	18×14	457×355.6	478×377	381
450×300	18×12	457×323.9	478×325	381
450×250	18×10	457×273.0	478×273	381
500×450	20×18	508×457	529×478	508
500×400	20×16	508×406.4	529×426	508
500×350	20×14	508×355.6	529×377	508
500×300	20×12	508×323.9	529×325	508
550×500	22×20	559×508	–	508
550×450	22×18	559×457	–	508
550×400	22×16	559×406.4	–	508
550×350	22×14	559×355.6	–	508
600×550	24×22	610×559	–	508
600×500	24×20	610×508	630×529	508
600×450	24×18	610×457	630×478	508
600×400	24×22	610×406.4	630×426	508
650×600	26×24	660×610	–	610
650×550	26×22	660×559	–	610
650×500	26×20	660×508	–	610
650×450	26×18	660×457	–	610
700×650	28×26	711×660	–	610
700×600	28×24	711×610	720×630	610
700×550	28×22	711×559	–	610
700×500	28×20	711×508	720×530	610
750×700	30×28	762×711	–	610
750×650	30×26	762×660	–	610
750×600	30×24	762×610	–	610
750×550	30×22	762×559	–	610
800×750	32×30	813×762	–	610
800×700	32×28	813×711	820×720	610
800×650	32×26	813×660	–	610
800×600	32×24	813×610	820×630	610
850×800	34×32	864×813	–	610
850×750	34×30	864×762	–	610
850×700	34×28	864×711	–	610
850×650	34×26	864×660	–	610
900×850	36×34	914×864	–	610
900×800	36×32	914×813	920×820	610
900×750	36×30	914×762	–	610
900×700	36×28	914×711	920×720	610
950×900	38×36	965×914	–	610
950×850	38×34	965×864	–	610
950×800	38×32	965×813	–	610
950×750	38×30	965×762	–	610
1000×950	40×38	1016×965	–	610
1000×900	40×36	1016×914	1020×920	610
1000×850	40×34	1016×864	–	610
1000×800	40×32	1016×813	1020×820	610
1050×1000	42×40	1067×1016	–	610
1050×950	42×38	1067×965	–	610
1050×900	42×36	1067×914	–	610
1050×850	42×34	1067×864	–	610
1100×1050	44×42	1118×1067	–	610
1100×1000	44×40	1118×1016	1120×1020	610
1100×950	44×38	1118×965	–	610
1100×900	44×36	1118×914	1220×920	610
1150×1100	46×44	1168×1118	–	711
1150×1050	46×42	1168×1067	–	711
1150×1000	46×40	1168×1016	–	711
1150×950	46×38	1168×965	–	711
1200×1150	48×46	1220×1168	–	711
1200×1100	48×44	1220×1118	1220×1120	711
1200×1050	48×42	1220×1067	–	711
1200×1000	48×40	1220×1016	1220×1020	711

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Concentric Reducer/ Eccentric Reducer in Dubai, UAE

Jinay Metals, one of the leading suppliers of Concentric Reducer/ Eccentric Reducer in Dubai, UAE, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Stainless Steel Eccentric Reducer Price List in Ajman, Nickel Alloy Eccentric Reducer Manufacturer in West Dubai, Carbon Steel Eccentric Reducer Thickness, Super Duplex Steel Concentric Reducer Supplier in Jebel Ali, SMO 254 Welded Concentric Reducer Exporter in Ajman, Hastelloy Unequal Reducer Supplier in Dubai, Copper Nickel Eccentric Reducer Distributor in Abu Dhabi, Super Duplex Steel Concentric Reducer Supplier in UAE, Hastelloy Eccentric Reducer Distributor in Ras Al Khaimah, Butt Weld Concentric Reducer Sizes in mm

Types of Concentric Reducer/ Eccentric Reducer

Are Custom Sizes Available for Concentric Reducer/ Eccentric Reducer?

Yes, we provide custom sizes of Concentric Reducer/ Eccentric Reducer to match your exact project requirements. Jinay Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

Inconel Eccentric Reducer Supplier in Dubai, Copper Nickel Eccentric Reducer Price List in Abu Dhabi, Alloy Steel Pipe Fittings Supplier in Ras Al Khaimah, Alloy Steel Reducer Exporter in UAE, Carbon Steel Eccentric Reducer Exporter in Al Ain, Titanium Concentric Reducer Exporter in Jebel Ali, Monel Buttweld Concentric Reducer in Abu Dhabi, Monel Concentric Reducer Size Chart, Stainless Steel Eccentric Reducer Price in UAE, Duplex Steel Concentric Reducer Weight Chart, Alloy Steel Concentric Reducer Supplier in Ajman, Incoloy Concentric Reducer Stockist in Sharjah

Concentric and Eccentric Reducers are crucial elements of piping systems that are to be used in linking pipes of various sizes to ensure that the fluid flow is smooth and that turbulence is minimized. Concentric reducers are normally applied in vertical piping systems to ensure that the flow is aligned whereas the eccentric reducers are best applied in horizontal pipelines to avoid the buildup of air and to provide the flow with drainage. The common industries where these fittings are used include oil and gas, petrochemical, power generation, water treatment, and even the HVAC systems. They are important in efficient and reliable fluid transfer operations because of their durability, resistance to corrosion and their capability to withstand high pressure and temperature.
