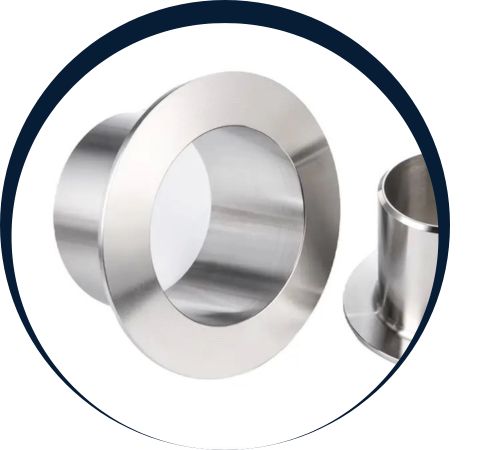

Lap Joint Stub Ends Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a prominent supplier and manufacturer of superior Lap Joint Stub Ends in Dubai, UAE. Our stub ends are fabricated using top-grade materials, designed to ensure longevity, resistance to corrosion, and excellent performance in piping systems. Our stub ends are proven to be easy to install and remove and are particularly well-suited for service applications requiring regular maintenance. Our stub ends are used extensively in the oil, gas, petrochemical and power industries, we are committed to providing quality, trustworthiness, and customer satisfaction throughout the UAE and abroad.

Inconel Lap Joint Stub End Supplier in Dubai, Copper Nickel Lap Joint Stub End Price List in Abu Dhabi, Alloy Steel Pipe Fittings Supplier in Jebel Ali, Alloy Steel Stub End Exporter in Ajman, Carbon Steel Lap Joint Stub End Exporter in Sharjah, Titanium Stub End Exporter in Dubai, Monel Buttweld Stub End in UAE, Monel Stub End Size Chart, Stainless Steel Lap Joint Stub End Price in Ras Al Khaimah, Duplex Steel Stub End Weight Chart, Alloy Steel Stub End Supplier in Ajman, Incoloy Stub End Stockist in Abu Dhabi

Lap Joint Stub Ends are made with high-quality materials, such as carbon steel, stainless steel, and alloy steel. The area consists of iron, chromium, nickel, and molybdenum, which provide great strength, durability, and corrosion resistance. These fittings usually have a yield strength of 170 to 450 MPa and a tensile strength of 485 to 750 MPa, as well as good elongation and impact resistance. Lap Joint Stub Ends are designed to be used effectively under high temperatures and pressures, offering reliable, leak-proof unions and long service life in demanding piping applications in general industry.

Lap Joint Stub Ends Specification

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASME B16.9 Lap Joint Stub End
ASTM A403 SS Lap Joint Stub End Pipe Fittings size	Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″
ANSI B16.9 lap joint stub End Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Buttweld Lap Joint Stub Ends Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Carbon Steel lap joint stub end Types	Seamless / ERW / Welded / Fabricated Pipe Fittings
Stainless Steel lap joint stub end Type	DN15-DN1200
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range	½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
ANSI B16.9 lap joint stub End Fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
Carbon Steel lap joint stub end Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Lap Joint Stub End	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 Lap Joint Stub End are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 Lap Joint Stub End have a thicker wall for higher-pressure applications.

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Copper Nickel Lap Joint Stub End Price List in Sharjah, Copper Nickel Stub End Supplier in Ajman, Duplex Steel Stub End Dealer in Abu Dhabi, Alloy Steel Lap Joint Stub End Supplier in Jebel Ali, Carbon Steel Stub End Exporter in Ajman, Alloy Steel Lap Joint Stub End Size Chart, Monel Buttweld Stub End Price in UAE, Super Duplex Steel Lap Joint Stub End Thickness, Inconel Buttweld Stub End Supplier in Dubai, Carbon Steel Stub End Stockist in Sharjah, Titanium Lap Joint Stub End Exporter in Ajman

Why Choose Lap Joint Stub Ends?

Choosing Lap Joint Stub Ends from Jinay Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

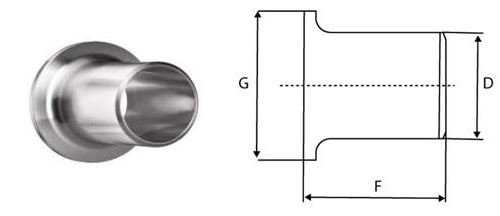

Dimensions of Lap Joint Stub Ends

Nominal Pipe Size	Outside diameter of barrel		Length (F)		Radius (R)	Diameter (G)
Nominal Pipe Size	Minimum	Maximum	Long Pattern	Short Pattern	Radius (R)	Diameter (G)
1/2″	20.5	22.8	76	51	3	35
3/4″	25.9	28.1	76	51	3	43
1″	32.6	35.0	102	51	3	51
1 1/4″	41.4	43.6	102	51	5	64
1 1/2″	47.5	49.9	102	51	6	74
2″	59.5	62.4	152	64	8	92
2 1/2″	72.2	75.3	152	64	8	105
3″	88.1	91.3	152	64	10	127
3 1/2″	100.8	104.0	152	76	10	140
4″	113.5	116.7	152	76	11	157
5″	140.5	144.3	203	76	11	186
6″	167.5	171.3	203	89	13	216
8″	218.3	222.1	203	102	13	270
10″	272.3	277.2	254	127	13	324
12″	323.1	328.0	254	152	13	381
14″	354.8	359.9	305	152	13	413
16″	405.6	411.0	305	152	13	470
18″	456.0	462.0	305	152	13	533
20″	507.0	514.0	305	152	13	584
22″	558.0	565.0	305	152	13	641
24″	609.0	616.0	305	152	13	692

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Lap Joint Stub Ends in Dubai, UAE

Jinay Metals, one of the leading suppliers of Lap Joint Stub Ends in Dubai, UAE, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Stainless Steel Lap Joint Stub End Price List in Abu Dhabi, Nickel Alloy Lap Joint Stub End Manufacturer in UAE, Carbon Steel Lap Joint Stub End Thickness, Super Duplex Steel Stub End Supplier in Ajman, SMO 254 Welded Stub End Exporter in Al Ain, Hastelloy Lap Joint Stub End Supplier in Sharjah, Copper Nickel Lap Joint Stub End Distributor in Abu Dhabi, Super Duplex Steel Stub End Supplier in Sharjah, Hastelloy Lap Joint Stub End Distributor in Dubai, Butt Weld Stub End Sizes in mm, Alloy 20 Seamless Lap Joint Stub Ends Supplier in Ajman

Types of Lap Joint Stub Ends

Are Custom Sizes Available for Lap Joint Stub Ends?

Yes, we provide custom sizes of Lap Joint Stub Ends to match your exact project requirements. Jinay Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

Nickel Alloy Stub End in Sharjah, Duplex Steel Buttweld Stub End Distributor in Dubai, Alloy Steel Stub End Supplier in Jebel Ali, Copper Nickel Alloy Stub End Weight Chart, Incoloy Lap Joint Stub End Exporter in UAE, SS Buttweld Stub End Manufacturer in Ajman, Duplex Steel Lap Joint Stub End Price List in Sharjah, Hastelloy Stub End Sizes in mm, Monel Stub End Distributor in Dubai, Incoloy Buttweld Lap Joint Stub Ends Price List in Jebel Ali

Lap Joint Stub Ends are frequently used in piping configurations where periodic inspection, disassembly, or maintenance of the components is a requirement. Usually used with lap joint flanges, these fittings also facilitate alignment and rotation of the lap joint flanges following welding. These fittings are effectively utilized in many industrial applications, including oil and gas, petrochemical, power generation, water treatment, and food processing. With their ability to resist corrosion, provide strength and flexibility, these fittings are applicable in both high- and low-pressure situations. In summary, Lap Joint Stub Ends offer an efficient, cost-effective, durable and reliable means of making pipe connections, while enhancing performance and reliability in potently critical industrial operations.
