Lateral Tee Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a major manufacturer and distributor of Lateral Tees in Dubai, UAE, that produces high quality solutions of efficient piping system branching. Our side by side tees are also designed after a careful consideration and produced by using high quality materials so that they are strong, leakproof and durable. Having international standards, they find extensive application in oil and gas, petrochemical and power, and water treatment sectors. Jinay Metals offers reliable quality piping products with prompt delivery to meet the varying industrial requirements.

Lateral Tee Price List in Abu Dhabi, Stainless Steel Lateral Tee Supplier in Dubai, ANSI/ASME B16.9 Lateral Exporter in Sharjah, SS Lateral Tee Supplier in Al Ain, Carbon Steel Lateral Bend Exporter in Sharjah, Alloy Steel ASME B16.25 Lateral Tee Size Chart, ANSI B19.28 Lateral Price in UAE, CS Lateral in Al Ain, Duplex Steel Lateral Tee Supplier in Ajman, Nickel Alloy Lateral Stockist in Abu Dhabi, Low Temperature Carbon Steel Lateral Bend Exporter in Dubai

Lateral Tees are made of high-quality materials that include carbon stee, stainless steel, alloy steel, and duplex alloys, combining a balanced selection of elements, such as chromium, nickel, molybdenum, and manganese, enhancing their resistance to corrosion, strength, and durability. Mechnically, lateral tees provide excellent tensile and yield strength, good impact resistance, and exceptional toughness for resistance to pressure and temperature. The robust structural integrity of lateral tees allows for leak proof perfomance in indurial applications where reliability, stability, and long service life are required.

Lateral Tee Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Size: 1/2” TO 36”

Form: Lateral Tee, Butt weld Tee, Fitting Tee

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Low Temperature Carbon Steel Lateral Tee Exporter in Abu Dhabi, Lateral Tee Price List in Ajman, Stainless Steel Lateral Supplier in Abu Dhabi, ANSI/ASME B16.9 Lateral Tee Exporter in Jebel Ali Alloy Steel Lateral Exporter in Ajman, ASME B16.9 Lateral Tee in Abu Dhabi, CS Lateral Size Chart, Alloy Steel ASME B16.25 Lateral Price in UAE, Lateral Tee Manufacturer Weight Chart, Lateral Supplier in Abu Dhabi, Stainless Steel Lateral Stockist in UAE

Why Choose Lateral Tee from Jinay Metals?

Choosing Lateral Tee from Jinay Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

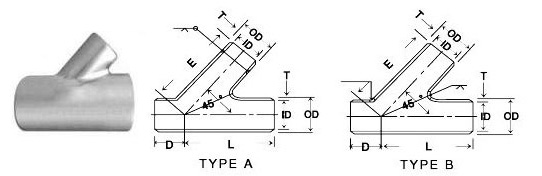

Dimensions of Lateral Tee

Nominal Pipe Size	TYPE	Outside Diameter OD	STD				X – S				NPS
Nominal Pipe Size	TYPE	Outside Diameter OD	E & L	D	T	ID	E & L	D	T	ID	NPS
1 1¼ 1½	B B B	1.315 1.660 1.900	5.75 6.25 7.00	1.75 1.75 2.00	0.133 0.140 0.145	1.049 1.380 1.610	6.50 7.25 8.50	2.00 2.25 2.50	0.179 0.191 0.200	0.957 1.278 1.500	1 1¼ 1½
2 2½ 3	A/B B B	2.375 2.875 3.500	8.00 9.50 10.00	2.50 2.50 3.00	0.154 0.203 0.216	2.067 2.469 3.068	8.00 *9.00 10.50 11.00	2.50 2.50 3.00	0.128 0.276 0.300	1.939 2.323 2.900	2 2½ 3
3½ 4 5	B A/B B	4.000 4.500 5.562	11.50 12.00 13.50	3.00 3.00 3.50	0.226 0.237 0.258	3.548 4.026 5.047	12.50 12.00 *13.50 15.00	3.00 3.00 3.50	0.318 0.337 0.375	3.364 3.826 4.813	3½ 4 5
6 8 10	A/B B B	6.625 8.625 10.750	14.50 17.50 20.50	3.50 4.50 5.00	0.280 0.322 0.365	6.065 7.981 10.020	14.50 *17.50 20.50 24.00	3.50 *4.00 5.00 5.50	0.432 0.500 0.500	5.761 7.625 9.750	6 8 10
12 14 16	B B B	12.750 14.000 16.000	24.50 27.00 30.00	5.50 6.00 6.50	0.375 0.375 0.375	12.000 13.250 15.250	27.50 31.00 34.50	6.00 6.50 7.50	0.500 0.500 0.500	11.750 13.000 15.000	12 14 16
18 20 24	B B B	18.000 20.000 24.000	32.00 35.00 40.50	7.00 8.00 9.00	0.375 0.375 0.375	17.250 19.250 23.250	37.50 40.50 47.50	8.00 8.50 10.00	0.500 0.500 0.500	17.000 19.000 23.000	18 20 24

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Lateral Tee in Dubai, UAE

Jinay Metals, one of the leading suppliers of Lateral Tee in Dubai, UAE, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Stainless Steel Lateral Tee Exporter in Abu Dhabi, Carbon Steel Lateral Tee in mm, Alloy Steel Lateral Manufacturer in Jebel Ali, Super Duplex Lateral Bend in Dubai, Nickel Alloy Lateral Tee, Low Temperature Carbon Steel Lateral Supplier in Ajman, ANSI/ASME B16.9 Lateral Price List in United Kingdom, SS Lateral Bend Distributor in UAE, Alloy Steel ASME B16.25 Lateral Tee Supplier in Dubai, Lateral Tee Distributor in UAE

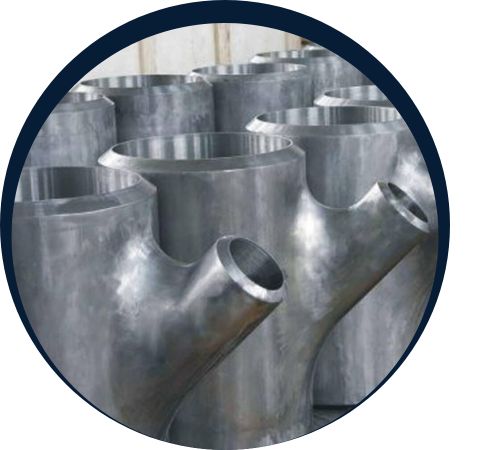

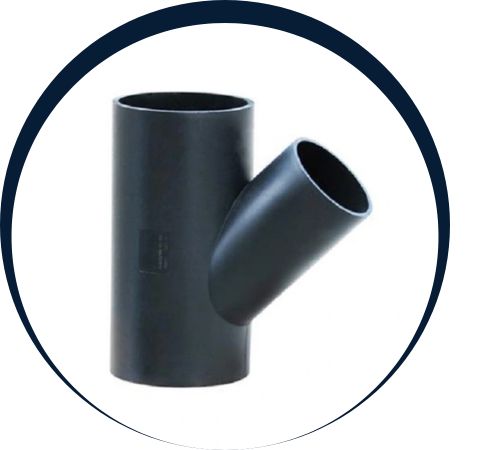

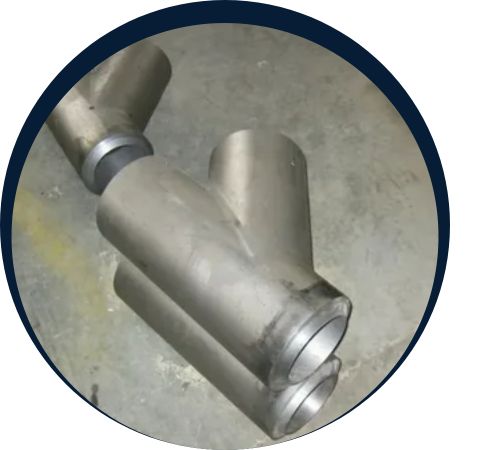

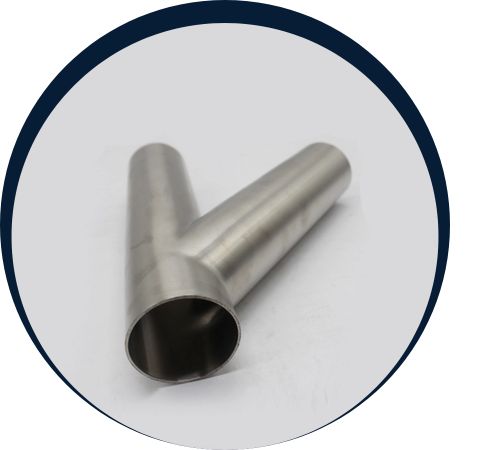

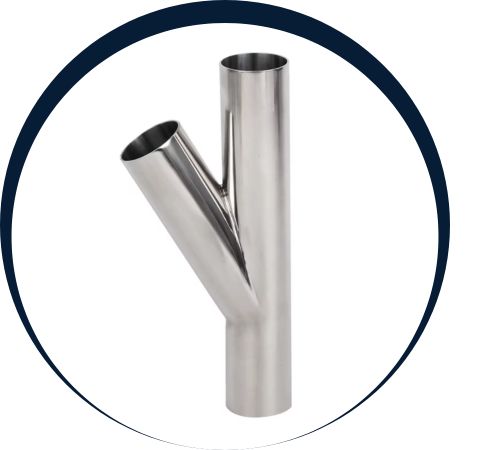

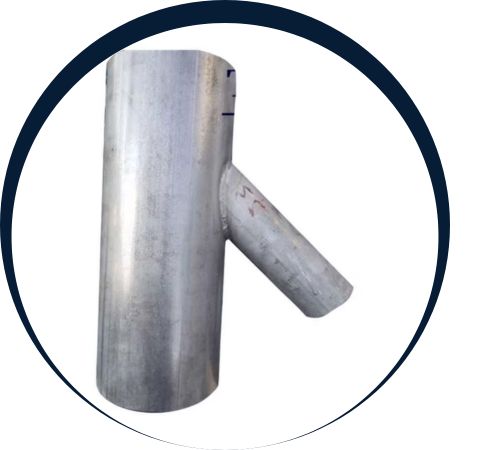

Types of Lateral Tee

Are Custom Sizes Available for Lateral Tee?

Yes, we provide custom sizes of Lateral Tee to match your exact project requirements. Jinay Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

Lateral Tee Supplier in UAE, Stainless Steel Lateral Tee Weight Chart, Carbon Steel Lateral Tee Exporter in Ajman, Alloy Steel Lateral Manufacturer in Sharjah, Duplex Steel Lateral Tee Price List in Ras Al Khaimah, Super Duplex Lateral Tee Sizes in mm, Nickel Alloy Lateral Tee Distributor in Dubai, Low Temperature Carbon Steel Lateral Tee Distributor in Jebel Ali

Lateral tees are common in piping systems that need to divert and branch off at a 45-degree angle, resulting in an efficient and simple branch connection. Lateral tees are commonly used in the oil and gas industry, petrochemical facilities, oil refineries, chemical industries, and other industrial applications to distribute fluids, gas, or steam. In a water treatment facility, lateral tees can also help provide all necessary flow management in a high-pressure pipe system. Power generation plants utilize lateral tees for critical process piping. Lateral tees are extremely durable, resistant to corrosion, and designed for high mechanical strength, which means their suitability for any applications in the underground or above-ground fields will provide long-lasting performance for industrial and commercial services.
