Based in Dubai, United Arab Emirates, Jinay Metals is a top producer and supplier of premium Incoloy 825 Flanges. Our specialty is providing corrosion-resistant and long-lasting flanges that are made to function in harsh conditions. We are renowned for our precision engineering and excellent material standards. Numerous industries, including petrochemical, power generation, oil and gas, and marine applications, use our Incoloy 825 Flanges extensively. Jinay Metals guarantees products that satisfy client requirements and international standards by focusing on quality, prompt delivery, and customer satisfaction. For dependable, high-performing Incoloy 825 Flanges in the UAE and elsewhere, rely on Jinay Metals.
Incoloy 825 Flanges are composed mainly of nickel (38–46%), iron (22% min), chromium (19.5–23.5%), with additions of molybdenum, copper, and titanium for enhanced corrosion resistance. This alloy offers excellent protection against oxidizing and reducing acids, stress corrosion cracking, and pitting. Mechanically, Incoloy 825 provides a tensile strength of around 550 MPa, yield strength of 220 MPa, and elongation of 30–45%. These properties make it ideal for harsh environments and high-temperature applications in chemical, marine, and oil and gas industries.
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

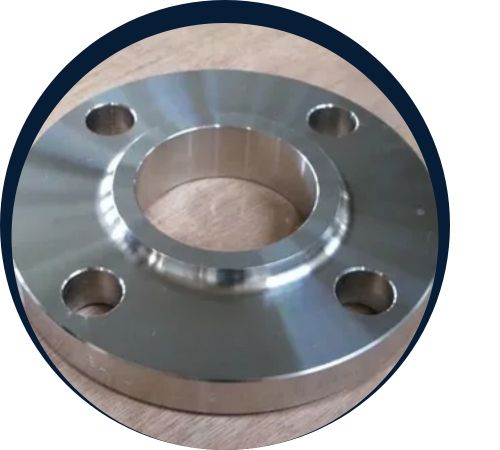

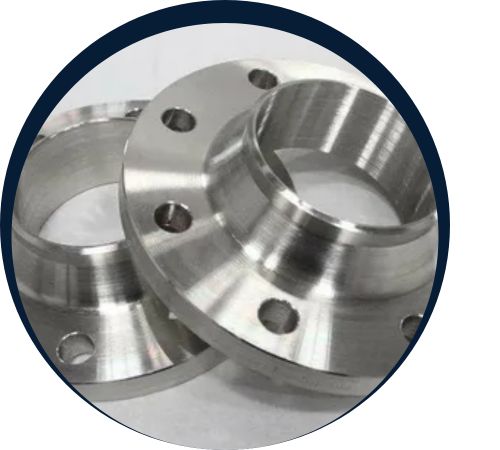

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

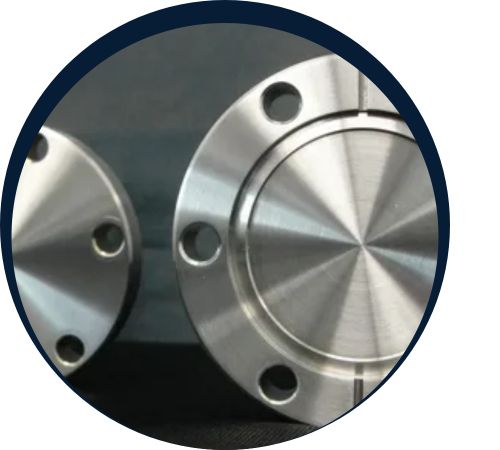

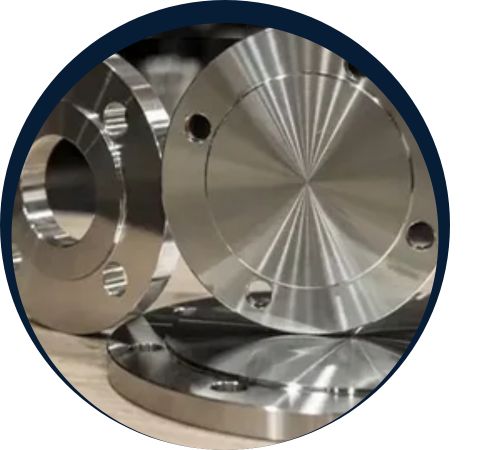

Type : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3 | 22.00 min | 38 – 46 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Blind Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These Flanges are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise. Jinay Metals providing reliable and high-performance Incoloy 825 Flanges tailored to meet your specific operational and project requirements.
Jinay Metals, one of the leading suppliers of Incoloy 825 Flanges in Dubai, UAE, offers a wide selection of high-quality flanges suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide Incoloy Flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored flanges solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Industries that need outstanding resistance to corrosion and high temperatures frequently use Incoloy 825 flanges. They are frequently used in power generation facilities, oil and gas refineries, chemical processing facilities, and marine environments. These flanges are appropriate for heat exchangers, pressure vessels, condensers, and piping systems because they are perfect for handling sulfur-containing environments, acidic solutions, and seawater. Because of its exceptional strength and stability in challenging environments, Incoloy 825 is also useful in the manufacturing of pharmaceuticals, pollution control devices, and nuclear fuel reprocessing. In demanding industrial applications, their dependability guarantees long-term performance and safety.
