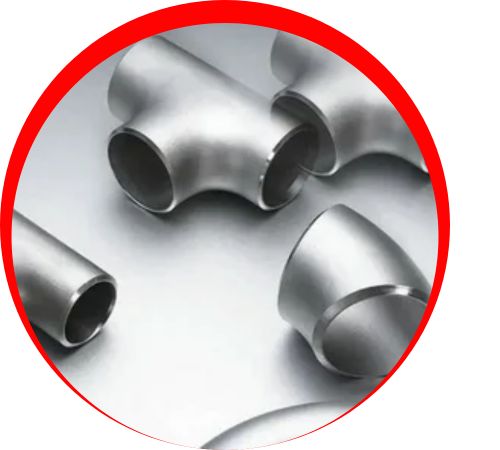

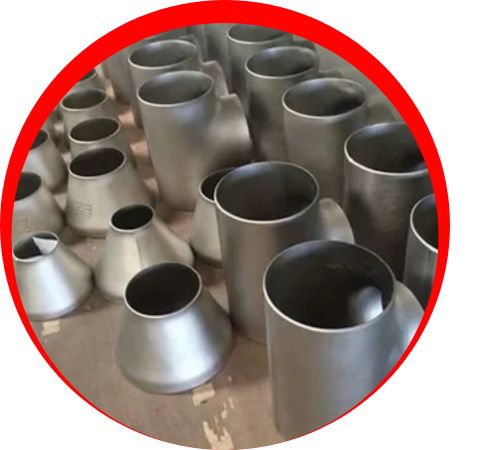

Jinay Metals, a reputable manufacturer and supplier located in Dubai, UAE, focuses on crafting high-quality Monel Forged Fittings that are built to last and resist corrosion. These fittings are designed to perform reliably even in the toughest conditions, especially in marine, chemical, and offshore industries. With cutting-edge forging technology and strict quality standards, Jinay Metals ensures that their products are precise, strong, and have a long lifespan. Their Monel Forged Fittings are perfect for connecting and securing piping systems in situations where high performance, resistance to corrosive elements, and mechanical stability are crucial.
Monel Forged Fittings mainly consist of nickel (up to 67%) and copper, along with small amounts of iron, manganese, silicon, and carbon. This special blend gives them remarkable resistance to seawater, acids, and alkalis, along with impressive mechanical strength. They boast high tensile and yield strength, good ductility, and resistance to stress-corrosion cracking. Monel alloys maintain their toughness across a wide range of temperatures, making them suitable for both cryogenic and high-heat environments. Their unique combination of strength and corrosion resistance makes them a top choice for demanding industrial applications.
Specifications : ASTM B564 & ASME SB564
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Grades : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Forged Fittings from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Monel Forged Fittings in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Monel Forged Fittings to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
These Monel Forged Fittings find extensive use in various industries, including marine engineering, chemical processing, oil and gas, and power generation. They are particularly well-suited for heat exchangers, condensers, pumps, valves, and piping systems that come into contact with seawater and corrosive chemicals. In offshore and marine settings, they provide exceptional resistance to saltwater corrosion and biofouling. Thanks to their durability, weldability, and ability to maintain structural integrity under high pressure and temperature, Monel Forged Fittings are a dependable option for long-term industrial performance and safety.
