Pipe Cap/End Cap Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a Dubai based company specializing in manufacturing and supplying high-quality of Pipe Caps and End Caps in UAE. The products are designed to be precise in terms of their design with premium grade materials that guarantee durability, corrosion resistance and perfect sealing operations. They are meant to save pipe ends and stop leakages, which makes them suitable to be used in a variety of industries, such as oil, gas, petrochemical, and water treatment systems. Being a firm that believes in quality and customer satisfaction, Jinay Metals provides quality and efficient piping solutions in the UAE.

End Cap Price List in Jebel Ali, Stainless Steel End Cap Supplier in Sharjah, ANSI/ASME B16.9 Pipe Cap Exporter in Dubai, SS End Cap Supplier in Sharjah, Carbon Steel Pipe Cap/End Cap Exporter in Ajman, Alloy Steel ASME B16.25 Pipe Cap Size Chart, ANSI B19.28 End Cap Price in UAE, MSS-SP-43 Pipe Cap in Sharjah, Duplex Steel End Cap Supplier in Dubai, Nickel Alloy Pipe Cap Stockist in Ajman, Low Temperature Carbon Steel Pipe Cap/End Cap Exporter in Abu Dhabi

Pipe Caps and End Caps are created with high-end materials – stainless steel, carbon steel, and alloy steel. The materials are constructed with iron, chromium, nickel, and molybdenum, which provides superior corrosion resistance, strength, and durability. The tensile strength of Pipe Caps and End Caps is between 485–750 MPa, with a yield strength between 170 to 450 MPa. Pipe Caps and End Caps have a very good elongation and impact resistance. Pipe Caps and End Caps can be exposed to high pressure and temperature, with leak-proof sealing together with a long service life, providing protection for piping systems in the industrial market.

Pipe Cap Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: Pipe Caps

End Cap Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: End Caps

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Pipe Cap Supplier in Dubai, Stainless Steel End Cap Weight Chart, Carbon Steel Pipe Cap Exporter in Ajman, Alloy Steel Pipe Cap/End Cap Manufacturer in UAE, Duplex Steel Pipe Cap Price List in Ajman, Super Duplex End Cap Sizes in mm, Nickel Alloy Pipe Cap Distributor in Abu Dhabi, Low Temperature Carbon Steel Pipe Cap/End Cap Distributor in Sharjah.

Why Choose Pipe Cap/End Cap From Jinay Metals?

Choosing Pipe Cap/End Cap from Jinay Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

Pipe Cap Dimension

Nominal Pipe Size	Outside diameter at bevel	Length(E)	Limitwall thickness
1/2″	21.3	25	4.57
3/4″	26.7	25	3.81
1″	33.4	38	4.57
1 1/4″	42.2	38	4.83
1 1/2″	48.3	38	5.08
2″	60.3	38	5.59
2 1/2″	73.0	38	7.11
3″	88.9	51	7.62
3 1/2″	101.6	64	8.13
4″	114.3	64	8.64
5″	141.3	76	9.65
6″	168.3	89	10.92
8″	219.1	102	12.70
10″	273.0	127	12.70
12″	323.8	152	12.70
14″	355.6	165	12.70
16″	406.4	178	12.70
18″	457.0	203	12.70
20″	508.0	229	12.70
22″	559.0	254	12.70
24″	610.0	267	12.70

The dimensions are in millimeters

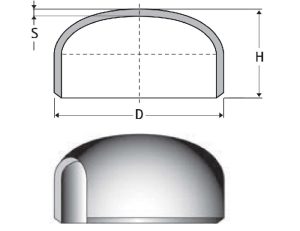

End Cap Dimension

ode FOSTD – FOXS	Nominal Diameter		Wall Th. S mm		Height H mm	Theoretical Weight kg
ode FOSTD – FOXS	Poll.	D mm	STD	XS	Height H mm	STD	XS
5	1/2	21.34	2.77	3.73	25.4	0.03	–
7	3/4	26.67	2.87	3.91	25.4	0.06	0.08
10	1	33.40	3.38	4.55	38.1	0.10	0.14
12	1” 1/4	42.16	3.56	4.85	38.1	0.14	0.18
15	1” 1/2	48.26	3.68	5.08	38.1	0.16	0.23
20	2	60.32	3.91	5.54	38.1	0.27	0.32
25	2” 1/2	73.02	5.16	7.01	38.1	0.41	0.45
30	3	88.90	5.49	7.62	50.8	0.65	0.82
40	4	114.30	6.02	8.56	63.5	1.15	1.54
50	5	141.30	6.55	9.52	76.2	1.90	2.59
60	6	168.27	7.11	10.97	88.9	2.92	4.10
80	8	219.07	8.18	12.70	101.6	5.07	7.3
100	10	273	9.27	12.70	127	9.1	12.0
120	12	323.9	9.52	12.70	152	13.6	17.0
140	14	355.6	9.52	12.70	165	14.42	19.8
160	16	406.4	9.52	12.70	178	18.86	25.89
180	18	457.2	9.52	12.70	203	27.65	36.52
200	20	508	9.52	12.70	229	35.60	46.98
240	24	609.6	9.52	12.70	267	46	64.60

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Pipe Cap/End Cap in Dubai, UAE

Jinay Metals, one of the leading suppliers of Pipe Cap/End Cap in Dubai, UAE, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Stainless Steel End Cap Exporter in Jebel Ali, Carbon Steel Pipe Cap in mm, Alloy Steel Pipe Cap Manufacturer in Ajman, Super Duplex End Cap in Dubai, Nickel Alloy Pipe Cap/End Cap, Low Temperature Carbon Steel Pipe Cap/End Cap Supplier in Sharjah, ANSI/ASME B16.9 End Cap Price List in Abu Dhabi, SS Pipe Cap Distributor in UAE, Alloy Steel ASME B16.25 Pipe Cap/End Cap Supplier in Sharjah, Pipe Fittings End Cap Distributor in Dubai

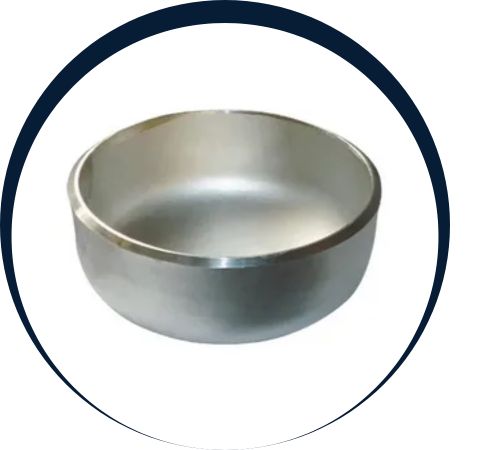

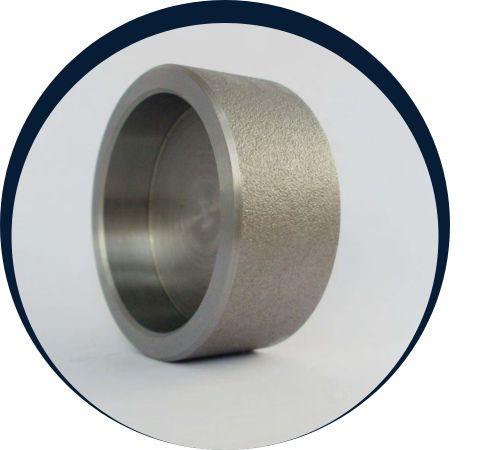

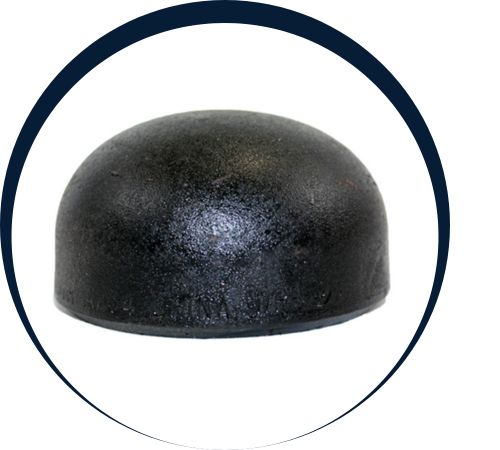

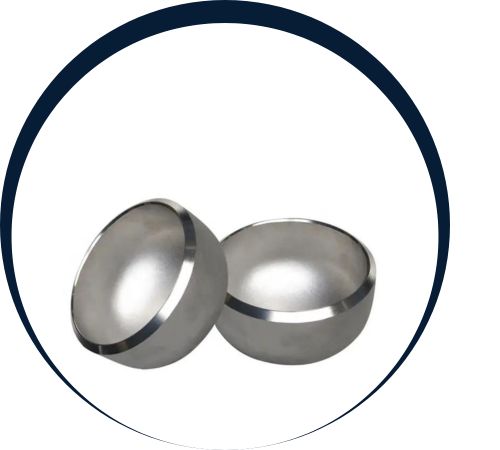

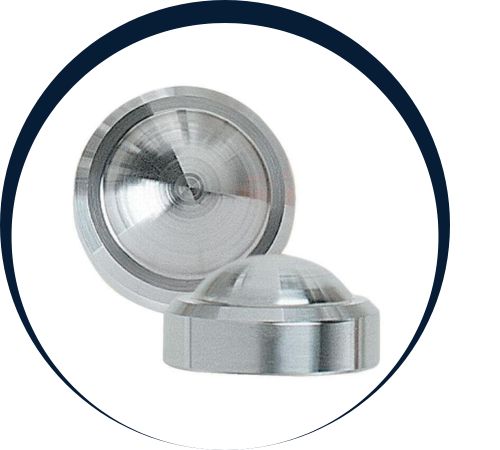

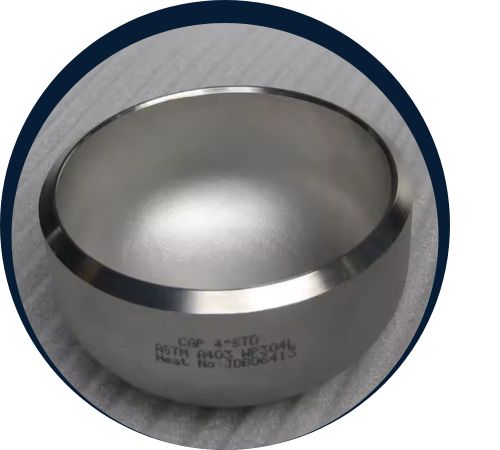

Types of Pipe Cap/End Cap

Are Custom Sizes Available for Pipe Cap/End Cap?

Yes, we provide custom sizes of Pipe Cap/End Cap to match your exact project requirements. Jinay Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

Low Temperature Carbon Steel End Cap Exporter in Dubai, Pipe Cap Price List in Abu Dhabi, Stainless Steel Pipe Cap Supplier in Sharjah, ANSI/ASME B16.9 Pipe Cap Exporter in Jebel Ali, Alloy Steel End Cap Exporter in Al Ain, ASME B16.9 Pipe Cap in Ajman, MSS-SP-43 Pipe Cap Size Chart, Alloy Steel ASME B16.25 Price in Ras Al Khaimah, Pipe Cap Manufacturer Weight Chart, Pipe Cap/End Cap Supplier in Sharjah, Stainless Steel End Cap Stockist in UAE

Pipe Cap/End Cap are very important in oil and gas, petrochemical, power generation, water treatment and construction industries. These lids ensure there are no leakages, the system remains under pressure, and a safe sealing of the system is achieved when a maintenance or test-run activity takes place. They are also applied in temporary or permanent ends of pipes, as well as protection of storage. Pipe Caps and End Caps are very corrosion resistant and durable, which is why they are safe, efficient and last long in various industrial applications.
