1D / 1.5D / 3D / 5D Elbow Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a reliable producer and distributor of premium 1D, 1.5D, 3D, and 5D Elbows in Dubai, United Arab Emirates. Manufactured from high–quality materials, Jinay Metals 1D, 1.5D, 3D, and 5D Elbows are designed and produced with astonishing accuracy to ensure low pressure loss, smooth flow, and easy durability in piping applications. They are useful for various bending radius and are widely used in oil and gas, petrochemical, power generation, and water treatment. Jinay Metals delivers unmatched quality and dependable performance, providing piping solutions that meet international standards for any of your needs or specifications across the UAE.

1D Elbow Price List in Dubai, Stainless Steel 1D Elbow Supplier in Abu Dhabi, ANSI/ASME B16.9 1.5D Elbow Exporter in Jebel Ali, SS 3D Elbow Supplier in Ajman, Carbon Steel 5D Elbow Exporter in UAE, Alloy Steel ASME B16.25 3D Elbow Size Chart, ANSI B19.28 5D Elbow Price in Dubai, MSS-SP-43 1D Elbow in UAE, Duplex Steel 1.5D Elbow Supplier in Al Ain, Nickel Alloy 5D Elbow Stockist in Abu Dhabi, Low Temperature Carbon Steel 5D Elbow Exporter in Dubai

1D, 1.5D, 3D, and 5D Elbows are produced with premium materials that include stainless steel, carbon steel, and alloy steel. The elements used in the customary processing consist of iron, chromium, nickel, and molybdenum for strength and resistance to corrosion and durability. Elbows of this quality may possess mechanical properties such as tensile strength from 485–750 MPa, yield strength of 170–450 MPa, and elongation, toughness, or impact resistance. The manufacturing process of these elbows will yield products that can withstand high pressure, high temperature, and high flow velocity while maintaining durability and allow for directional change in your piping system.

1D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless 1D Elbow Size: 1/2″~24″

ERW / Welded / Fabricated 1D Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: 1D Elbow

1.5D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless 1.5D Elbow Size: 1/2″~24″

ERW / Welded / Fabricated 1.5D Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: Pipe Fitting 1.5D Elbow

3D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Size: 1/2″ to 36″

Form: Buttweld 3D Elbow, Fitting 3D Elbow

5D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Size: 1/2″ to 36″

Form: Butt weld 5D Elbow, Fitting 5D Elbow

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Low Temperature Carbon Steel 1.5D Elbow Exporter in Abu Dhabi, 1D Elbow Price List in Ajman, Stainless Steel 3D Elbow Supplier in Abu Dhabi, ANSI/ASME B16.9 1D Elbow Exporter in Ajman, Alloy Steel 3D Elbow Exporter in Jebel Ali, ASME B16.9 5D Elbow in Dubai, MSS-SP-43 3D Elbow Size Chart, Alloy Steel ASME B16.25 Price in UAE, Pipe Fittings 1.5D Elbow Manufacturer Weight Chart, Fitting 1.5D Elbow Supplier in Dubai, Stainless Steel 5D Elbow Stockist in Jebel Ali.

Why Choose 1D / 1.5D / 3D / 5D Elbow From Jinay Metals?

Choosing 1D / 1.5D / 3D / 5D Elbow from Jinay Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

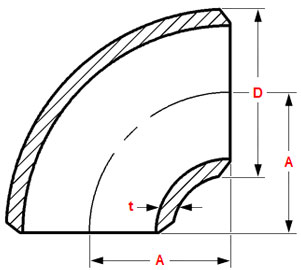

1D Elbow Dimensions

Size			Wall Thickness	Radius	Approx. Weight (kg)
DN		OD	t	A	e
inch	mm	mm	mm	mm	mm	45°	90°
Seamless
1	25	30	1.5	30	12	0.03	0.05
1¼	32	38	1.5	32.5	14	0.03	0.08
1½	40	44.5	1.5	40	17	0.06	0.14
2	50	57	1.5	52.5	22	0.10	0.20
2½	65	76	2	70	29	0.23	0.46
3	80	89	2	82.5	34	0.32	0.64
4	100	108	2.5	100	41	0.58	1.16
5	125	133	2.5	125	52	0.90	1.80
6	150	159	2.5	150	62	1.30	2.60
7	175	194	3	180	75	1.90	3.80
8	200	219	3	210	87	3.00	6.00
10	250	267	3	255	106	4.44	8.88
12	300	324	4	305	126	8.55	17.10
14	350	368	4	352.5	146	11.30	22.60
16	400	419	4	400	166	16.40	32.80
18	450	457	4.5	457	189	20.45	40.90
20	500	508	5	508	210	28.10	56.20
24	600	610	5	610	253	40.50	81.00
28	700	711	6	711	295	66.00	132.00
32	800	813	6	813	337	86.50	173.00
36	900	914	8	914	379	145.50	291.00

1.5D Elbow Dimensions

Inside	Wall	Centreline	Weight
Diameter	Thickness	Radius	Per Piece
‘A’ mm	‘B’ mm	‘C’ mm	kilos
15	1.50	30	0.03
20	1.50	35	0.04
25	1.50	32.5	0.06
32	1.50	45	0.11
40	1.50	60	0.20
50	2.00	73	0.31
65	2.00	95	0.52
80	2.00	123	0.77
100	2.00	150	1.20
100	3.00	150	1.79
125	2.00	188	1.88
150	2.00	225	2.69
150	3.00	225	4.09

3D Elbow Dimensions

NPS	OD	A	B
3/4	26.7	57	24
1	33.4	76	31
1-1/4	42.2	95	39
1-1/2	48.3	114	47
2	60.3	152	63
2-1/2	73.0	190	79
3	88.9	229	95
3-1/2	101.6	267	111
4	114.3	305	127
5	141.3	381	157
6	168.3	457	189
8	219.1	610	252
10	273.0	762	316
12	323.8	914	378
14	355.6	1067	441
NPS	OD	A	B
16	406.4	1219	505
18	457.0	1372	568
20	508.0	1524	632
22	559.0	1676	694
24	610.0	1829	757
26	660.0	1981	821
28	711.0	2134	883
30	762.0	2286	964
32	813.0	2438	1010
34	864.0	2591	1073
36	914.0	2743	1135
38	965.0	2896	1200
40	1016.0	3048	1264
42	1067.0	3200	1326
44	1118.0	3353	1389
NPS	OD	A	B
46	1168.0	3505	1453
48	1219.0	3658	1516

5D Elbow Dimensions

DN	D	R	C	B – W – Z
15	21.3	42.5	85	53
20	26.9	57.5	115	71
25	33.7	72.5	145	89
	38	82.5	165	101
32	42.4	92.5	185	114
40	48.3	109.5	219	134
	51	122.5	245	149
	57	130	260	158
50	60.3	137.5	275	168
	70	160	320	195
65	76.1	175	350	213
80	88.9	207.5	415	252
	101.6	235	470	286
	108	253	506	306
100	114.3	270	540	327
	133	311.5	623	378
125	139.7	330	660	400
	159	375	750	454
150	168.3	390	780	474
200	219.1	515	1030	624
	244.5	580	1160	702
250	273	650	1300	786
300	323.9	770	1540	932
350	355.6	850	1700	1 028
400	406.4	970	1940	1 173
450	457	1 122	2 244	1 350
500	508	1 245	2 490	1 500
550	559	1 398	2 796	1 677
600	610	1 525	3 050	1 830
650	660	1 650	3 300	1 980
700	711	1 778	3 556	2 133
750	762	1 905	3 810	2 286
800	813	2 033	4 066	2 439
850	864	2 155	4 310	2 587
900	914	2 285	4 570	2 742
1 000	1 016	2 540	5 080	3 048
1 050	1 067	2 665	5 335	3 201
1 100	1 118	2 790	5 580	3 354
1 150	1 168	2 915	5 830	3 504
1 200	1 219	3 050	6 100	3 657

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of 1D / 1.5D / 3D / 5D Elbow in Dubai, UAE

Jinay Metals, one of the leading suppliers of 1D / 1.5D / 3D / 5D Elbow in Dubai, UAE, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Stainless Steel 1D Elbow Exporter in Jebel Ali, Carbon Steel 5D Elbow in mm, Alloy Steel 1D Elbow Manufacturer in UAE, Super Duplex 5D Elbow in Jebel Ali, Nickel Alloy 5D Elbow, Low Temperature Carbon Steel 3D Elbow Supplier in UAE, ANSI/ASME B16.9 5D Elbow Price List in Dubai, SS 1D Elbow Distributor in Abu Dhabi, Alloy Steel ASME B16.25 1D Elbow Supplier in Al Ain, Pipe Fittings 3D Elbow Distributor in Abu Dhabi

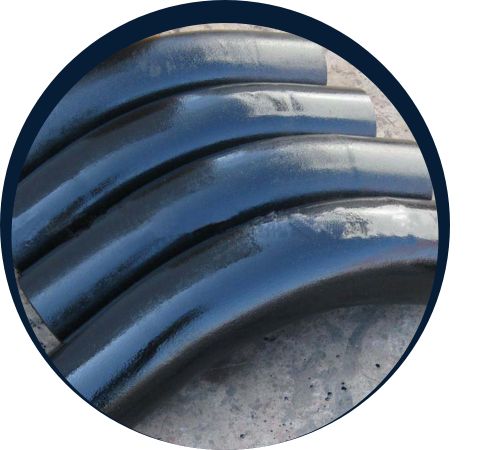

Types of 1D / 1.5D / 3D / 5D Elbow

Are Custom Sizes Available for 1D / 1.5D / 3D / 5D Elbow?

Yes, we provide custom sizes of 1D / 1.5D / 3D / 5D Elbow to match your exact project requirements. Jinay Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

5D Elbow Supplier in Abu Dhabi, Stainless Steel 5D Elbow Weight Chart, Carbon Steel 3D Elbow Exporter in Sharjah, Alloy Steel 1D Elbow Manufacturer in Jebel Ali, Duplex Steel 1.5D Elbow Price List in Ajman, Super Duplex 3D Elbow Sizes in mm, Nickel Alloy 1.5D Elbow Distributor in UAE, Low Temperature Carbon Steel 1.5D Elbow Distributor in Ajman

Industries commonly employ 1D, 1.5D, 3D, and 5D Elbows for a seamless transition within piping systems in which flow is maintained, while changing direction. These elbows are utilized in oil and gas pipelines, petrochemical plants, and refineries, specifically in high-pressure and temperature applications requiring sturdier fittings. They are common in power generation, chemical processing, water treatment facilities, and HVAC systems, to guide fluid or gas transition. Longer radius elbows, 3D and 5D, are effective in reducing pressure drop, whereas 1D and 1.5D elbows are best for small installation locations. Their versatility and strength make them suitable for industrial and commercial applications.
