180 Deg Long Radius Elbow/180 Deg Short Radius Elbow

Home > 180 Deg Long Radius Elbow/180 Deg Short Radius Elbow

180 Deg Long/Short Radius Elbow Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a top–quality manufacturer and supplier of top 180° Long Radius and 180° Short Radius Elbows in Dubai, UAE. Constructed from high-quality materials, our elbows are designed for superior durability and corrosion resistance, as well as smooth flow turning in piping. These fittings are commonly used in the oil and gas, petrochemical, power generation, and water treatment industries. Jinay Metals is committed to quality and customer satisfaction by delivering dependable, quality piping solutions that conform to international standards and suit various industrial needs throughout the UAE.

180 Deg Short Radius Elbow Price List in UAE, Stainless Steel 180 Deg Long Radius Elbow Supplier in Ajman, ANSI/ASME B16.9 180 Deg Short Radius Elbow Exporter in Al Ain, SS 180 Deg Short Radius Elbow Supplier in Jebel Ali, Carbon Steel 180 Deg Long Radius Elbow Exporter in Dubai, Alloy Steel ASME B16.25 180 Deg Long Radius Elbow Size Chart, ANSI B19.28 180 Deg Short Radius Elbow Price in Abu Dhabi, MSS-SP-43 180 Deg Long Radius Elbow in Sharjah, Duplex Steel 180 Deg Long Radius Elbow Supplier in Ajman, Nickel Alloy 180 Deg Long Radius Elbow Stockist in Dubai, Low Temperature Carbon Steel 180 Deg Short Radius Elbow Exporter in Ajman

Made from high-quality materials such as stainless steel, alloy steel, and carbon steel, the 180° LR and 180° SR elbows consist of iron, molybdenum, nickel, and chromium that provide them with excellent strength, durability, and resistance to corrosion. These elbows have mechanical properties such as tensile strength from 485 MPa to 750 MPa, yield strength between 170 MPa and 450 MPa, as well as good elongation, impact strength, and toughness. They are suited for use in high-pressure and high-temperature service applications, both LR and SR elbows are engineered to provide smooth transitions for flow diversion and long-term durability in industrial piping applications.

180 Deg Long Radius Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless 180° Long Radius Elbow Size: 1/2″~24″

ERW / Welded / Fabricated 180° Long Radius Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: 180° Long Radius Elbow

180 Deg Short Radius Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless 180° Short Radius Elbow Size: 1/2″~24″

ERW / Welded / Fabricated 180° Short Radius Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: 180° Short Radius Elbow

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Low Temperature Carbon Steel 180 Deg Long Radius Elbow Exporter in Ajman, 180 Deg Short Radius Elbow Price List in Jebel Ali, Stainless Steel 180 Deg Short Radius Elbow Supplier in Abu Dhabi, ANSI/ASME B16.9 180 Deg Long Radius Elbow Exporter in Sharjah, Alloy Steel 180 Deg Long Radius Elbow Exporter in Dubai, ASME B16.9 180 Deg Short Radius Elbow in Sharjah, MSS-SP-43 180 Deg Long Radius Elbow Size Chart, Alloy Steel ASME B16.25 Price in Dubai, Pipe Fittings 180 Deg Short Radius Elbow Manufacturer Weight Chart, Fitting 180 Deg Short Radius Elbow Supplier in Abu Dhabi, Stainless Steel 180 Deg Long Radius Elbow Stockist in UAE.

Why Choose 180 Deg Long Radius Elbow/180 Deg Short Radius Elbow From Jinay Metals?

Choosing 180 Deg Long Radius Elbow/180 Deg Short Radius Elbow from Jinay Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

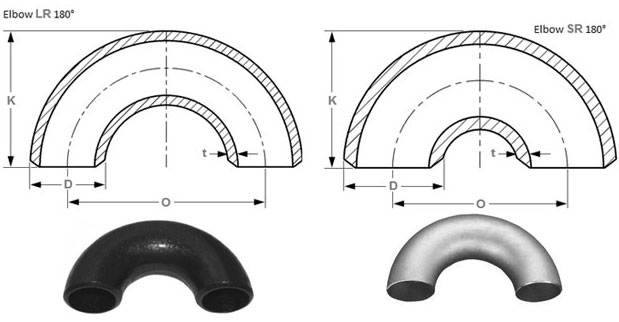

180 Deg Long Radius Elbow/180 Deg Short Radius Elbow Dimensions

NPS	O.D. D	180° Long Radius		180° Short Radius
NPS	O.D. D	Center to Center O	Back to Face K	Center to Center O	Back to Face K
1/2	21.3	76	48	–	–
3/4	26.7	76	51	–	–
1	33.4	76	56	51	41
1¼	42.2	95	70	64	52
1½	48.3	114	83	76	62
2	60.3	152	106	102	81
2½	73	190	132	127	100
3	88.9	229	159	152	121
3½	101.6	267	184	178	140
4	114.3	305	210	203	159
5	141.3	381	262	254	197
6	168.3	457	313	305	237
8	219.1	610	414	406	313
10	273	762	518	508	391
12	323.8	914	619	610	467
14	355.6	1067	711	711	533
16	406.4	1219	813	813	610
18	457	1372	914	914	686
20	508	1524	1016	1016	762
22	559	1676	1118	1118	838
24	610	1829	1219	1219	914

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of 180 Deg Long Radius Elbow/180Deg Short Radius Elbow in Dubai, UAE

Jinay Metals, one of the leading suppliers of 180 Deg Long Radius Elbow/180 Deg Short Radius Elbow in Dubai, UAE, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Stainless Steel 180 Deg Long Radius Elbow Exporter in Dubai, Carbon Steel 180 Deg Long Radius Elbow in mm, Alloy Steel 180 Deg Short Radius Elbow Manufacturer in Abu Dhabi, Super Duplex 180 Deg Short Radius Elbow in Sharjah, Nickel Alloy 180 Deg Long Radius Elbow, Low Temperature Carbon Steel 180 Deg Long Radius Elbow Supplier in Jebel Ali, ANSI/ASME B16.9 180 Deg Short Radius Elbow Price List in Ajman, SS 180 Deg Long Radius Elbow Distributor in UAE, Alloy Steel ASME B16.25 180 Deg Long Radius Elbow Supplier in Ajman, Pipe Fittings 180 Deg Short Radius Elbow Distributor in Abu Dhabi

Types of 180 Deg Long Radius Elbow/180 Deg Short Radius Elbow

Are Custom Sizes Available for 180 Deg Long Radius Elbow/180 Deg Short Radius Elbow?

Yes, we provide custom sizes of 180 Deg Long Radius Elbow/180 Deg Short Radius Elbow to match your exact project requirements. Jinay Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

180 Deg Long Radius Elbow Supplier in UAE, Stainless Steel 180 Deg Long Radius Elbow Weight Chart, Carbon Steel 180 Deg Long Radius Elbow Exporter in Ajman, Alloy Steel 180 Deg Long Radius Elbow Manufacturer in Al Ain, Duplex Steel 180 Deg Long Radius Elbow Price List in Sharjah, Super Duplex 180 Deg Long Radius Elbow Sizes in mm, Nickel Alloy 180 Deg Long Radius Elbow Distributor in Jebel Ali, Low Temperature Carbon Steel 180 Deg Long Radius Elbow Distributor in Abu Dhabi

180° Long Radius and 180° Short Radius Elbows are a popular choice in piping systems, allowing for complete reversal of flow, while facilitating smooth and efficient movement of fluid. Long Radius Elbows allow for the smoothest change of direction, lowering pressure drop and reducing turbulence, especially in high-flow applications. Short Radius Elbows work well in tight quarters where space is limited. The elbows can be found in various applications including oil and gas, petrochemical, power, water treatment, HVAC, and marine industries. The elbows are strong, resistant to corrosion, and able to withstand high pressure and temperature in a demanding industrial setting.
