Home > Threaded Flanges
Jinay Metals is one of the principal manufacturers and distributors of threaded flanges in Dubai, UAE, which maintains the high quality of the products and manufactures them with high accuracy. Our years of experience in the industry enable us to be specialized in manufacturing durable and corrosion-free threaded flange that can be used in different industries like oil, gas, petrochemical and construction industries. Our quality and delivery, customer satisfaction have earned us a reliable reputation in the UAE market as we deliver quality solutions that are international.
In relation to application requirements, threaded flanges are usually made out of high-quality materials i.e. carbon steel, stainless steel and alloy steel. Its chemical make-up consists of such elements as carbon, manganese, silicon, chromium, nickel and molybdenum that contribute to strength and resistance to corrosion. Mechanically, threaded flanges are known to be of good tensile strength, yield strength, hardness, and elongation properties, which makes them durable and leak free. Their strength enables them to resist high pressure, changes in temperature and vibration, thus enabling them to be used in piping systems in industrial and commercial systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Threaded Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These Flanges are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise. Jinay Metals providing reliable and high-performance Threaded Flanges tailored to meet your specific operational and project requirements.

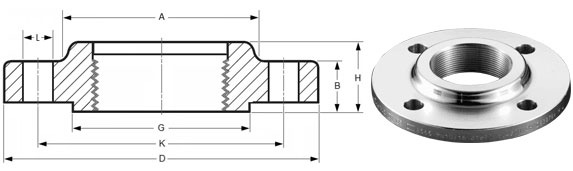

| Class | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| Diameter – A | 30 | 38 | 38 | 38 | 38 | 38 | 43 |
| Diameter – D | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Thickness – B | 9.6 | 12.7 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 20.7 | 28.7 | 28.7 | 36.6 | |
| Diameter – G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter – K | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Height – H | 14 | 21 | 22 | 22 | 32 | 32 | 40 |
| 15.6 | 22.6 | 28.4 | 28.4 | 38.4 | 38.4 | 46.4 | |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter – L | 15.9 | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
| Stud Bolts Diameter x Length | |||||||
| Diameter (in) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Length (mm) | 55 | 65 | 75 | 75 | 110 | 110 | 120 |
| NPS | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | NPS |
Jinay Metals, one of the leading suppliers of Threaded Flanges in Dubai, UAE, offers a wide selection of high-quality flanges suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide Threaded Flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored flanges solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Threaded flanges have found much application in many industries because of their simplicity in installation and welding of pipes. They have been designed to be used in low-pressure and non-critical use when maintenance or inspection is needed, and requires disassembly. Threading flanges are widely used in oil and gas, petrochemical, water treatment, power generation and shipbuilding sectors to provide leak-free and secure connections. They are also handy especially in flammable or explosives, where welding is not safe. Also, threaded flanges are utilized in plumbing, cooling, and compressed air pipelines, which are versatile, reliable, and have a long life of service in a wide range of operating conditions.
