Orifice Flanges Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a leading manufacturer and supplier based in Dubai, UAE, offering top quality Orifice Flanges. Our Orifice Flanges provide a convenient method for measuring and controlling the flow of fluids. Engineered with precision and produced with top-grade materials, our Orifice Flanges meet international stipulations, guaranteeing durability, strength, and reliable performance in demanding applications. Commonly used in oil and gas, petrochemical, power, and industry, Jinay Metals is focused on delivering exceptional products, delivering on-schedule service, and ensuring absolute satisfaction throughout the entire UAE and abroad.

Stainless Steel Orifice Flanges Price List in Dubai, Copper Nickel Orifice Flanges Distributor in West Midland, Super Duplex Steel Orifice Flanges Supplier in Jebel Ali, ANSI B16.5 Orifice Flanges Sizes in mm, Nickel Alloy Orifice Flanges Manufacturer in Ajman, Carbon Steel Orifice Flanges Thickness, Super Duplex Steel Orifice Flanges Supplier in Sharjah, SMO 254 Orifice Flanges Exporter in Dubai, Hastelloy Orifice Flanges Supplier in West Midland

Orifice Flanges are made of high-grade materials including alloy steel, carbon steel, and stainless steel, ensuring reliable performance and durability. These materials typically consist of iron, carbon, chromium, nickel, and molybdenum to create superior strength and corrosion resistant. They also exhibit excellent mechanical properties with tensile strength ranging from 400–750 MPa and yield strength between 250–500 MPa. Built for precision and durability, Orifice Flanges are capable of withstanding varying temperatures and pressures, while maintaining high dimensional stability and toughness, allowing the user to measure flow more accurately within an industrial piping system.

Orifice Flanges Specification

Dimensions :ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size :1/2″ (15 NB) to 48″ (1200NB)
Class :150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN :DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636,DIN 2637, DIN 2638, DIN 2673
BS : BS 4504 , BS 4504, BS 1560, BS 10
PN :PN6, PN10, PN16, PN25, PN40
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ANSI B16.5 Nickel Alloy Orifice Flanges in Sharjah, Duplex Steel Orifice Flanges Distributor in Ajman, Alloy Steel Orifice Flanges Supplier in Sharjah, Copper Nickel Alloy Orifice Flanges Weight Chart, Incoloy Orifice Flanges Exporter in Jebel Ali, SS Orifice Flanges Manufacturer in Ajman, Duplex Steel Orifice Flanges Price List in Dubai, Hastelloy Orifice Flanges Sizes in mm, Monel Orifice Flanges Distributor in Jebel Ali

Why Choose Orifice Flanges from Jinay Metals?

Choosing Orifice Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These Flanges are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise. Jinay Metals providing reliable and high-performance Orifice Flanges tailored to meet your specific operational and project requirements.

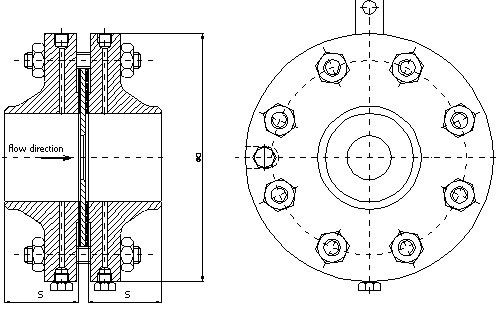

Orifice Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	Welding Neck Length	RF Dia.	RF Height	PCD	Orifice Hole dia	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E	F	G	H	I
1	25	125	36.6	54	33.4	81	50.8	2	88.9	6.4	4	5/8	125	3/4	M16	4.5
1 1/2	40	155	36.6	70	48.3	84	73	2	114.3	6.4	4	3/4	135	7/8	M20	6.5
2	50	165	36.6	84	60.3	84	92.1	2	127	6.4	8	5/8	125	3/4	M16	7
2 1/2	65	190	36.6	100	73	87	104.8	2	149.2	6.4	8	3/4	135	7/8	M20	7.5
3	80	210	36.6	117	88.9	87	127	2	168.3	9.5	8	3/4	135	7/8	M20	9.4
4	100	255	36.6	146	114.3	90	157.2	2	200	12.7	8	3/4	135	7/8	M20	13.2
6	150	320	36.6	206	168.3	98	215.9	2	269.9	12.7	12	3/4	135	7/8	M20	14.6
8	200	380	39.7	260	219.1	110	269.9	2	330.2	12.7	12	7/8	145	1	M24	30
10	250	445	46.1	321	273	116	323.8	2	387.3	12.7	16	1	165	1 1/8	M27	41
12	300	520	49.3	375	323.8	129	381	2	450.8	12.7	16	1 1/8	180	1 1/4	M30	62
14	350	585	52.4	425	355.6	141	412.8	2	514.4	12.7	20	1 1/8	185	1 1/4	M30	84
16	400	650	55.6	483	406.4	144	469.9	2	571.5	12.7	20	1 1/4	195	1 3/8	M33	111
18	450	710	58.8	533	457	157	533.4	2	628.6	12.7	24	1 1/4	205	1 3/8	M33	138
20	500	775	62	587	508	160	584.2	2	685.8	12.7	24	1 1/4	215	1 3/8	M33	171
24	600	915	68.3	702	610	167	692.2	2	812.8	12.7	24	1 1/2	240	1 5/8	M39	247

Class 600 Orifice Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	Welding Neck Length	RF Dia.	RF Height	PCD	Orifice Hole dia	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E	F	G	H	I
1	25	125	36.6	54	33.5	81	50.8	7	88.9	6.4	4	5/8	125	3/4	M16	5.5
1 1/2	40	155	36.6	70	48.3	84	73	7	114.3	6.4	4	3/4	135	7/8	M20	7.8
2	50	165	36.6	84	60.3	84	92.1	7	127	6.4	8	5/8	125	3/4	M16	8.3
2 1/2	65	190	36.6	100	73	87	104.8	7	149.2	6.4	8	3/4	135	7/8	M20	10.8
3	80	210	36.6	117	88.9	87	127	7	168.3	9.5	8	3/4	135	7/8	M20	12.6
4	100	275	38.1	152	114.3	102	157.2	7	215.9	12.7	8	7/8	150	1	M24	19
6	150	355	47.7	222	168.3	117	215.9	7	292.1	12.7	12	1	180	1 1/8	M27	37
8	200	420	55.6	273	219.1	133	269.9	7	349.2	12.7	12	1 1/8	195	1 1/4	M30	53
10	250	510	63.5	343	273	152	323.8	7	431.8	12.7	16	1 1/4	220	1 3/8	M33	86
12	300	560	66.7	400	323.8	156	381	7	489	12.7	20	1 1/4	230	1 3/8	M33	102
14	350	605	69.9	432	355.6	165	412.8	7	527	12.7	20	1 3/8	240	1 1/2	M36	150
16	400	685	76.2	495	406.4	178	469.9	7	603.2	12.7	20	1 1/2	260	1 5/8	M39	190
18	450	745	82.6	546	457.2	184	533.4	7	654	12.7	20	1 5/8	280	1 3/4	M42	240
20	500	815	88.9	610	508	190	584.2	7	723.9	12.7	24	1 5/8	300	1 3/4	M42	295
24	600	940	101.6	718	609.6	203	692.2	7	838.2	12.7	24	1 7/8	335	2	M48	365

Class 900 Orifice Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	Welding Neck Length	RF Dia.	RF Height	PCD	Orifice Hole dia	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E	F	G	H	I
1	25	150	38.1	52	33.5	83	50.8	7	101.6	6.4	4	7/8	150	1	M24	5.4
1 1/2	40	180	38.1	70	48.3	89	73	7	123.8	6.4	4	1	160	1 1/8	M27	7.8
2	50	215	38.1	105	60.3	102	92.1	7	165.1	6.4	8	7/8	150	1	M30	11.5
2 1/2	65	245	41.3	124	73	105	104.8	7	190.5	6.4	8	1	165	1 1/8	M27	15.8
3	80	240	38.1	127	88.9	102	127	7	190.5	9.5	8	7/8	150	1	M24	22
4	100	290	44.5	159	114.3	114	157.2	7	235	12.7	8	1 1/8	180	1 1/4	M30	22
6	150	380	55.6	235	168.3	140	215.9	7	317.5	12.7	12	1 1/8	195	1 1/4	M30	70
8	200	470	63.5	298	219.1	162	269.9	7	393.7	12.7	12	1 3/8	230	1 1/2	M36	119
10	250	545	69.9	368	273	184	323.8	7	469.9	12.7	16	1 3/8	240	1 1/2	M36	204
12	300	610	79.4	419	323.8	200	381	7	533.4	12.7	20	1 3/8	260	1 1/2	M36	303
14	350	640	85.8	451	355.6	213	412.8	7	558.8	12.7	20	1 1/2	280	1 5/8	M39	400
16	400	705	88.9	508	406.4	216	469.9	7	616	12.7	20	1 5/8	290	1 3/4	M42	510
18	450	785	101.9	565	457.2	229	533.4	7	685.8	12.7	20	1 7/8	330	2	M48	738
20	500	855	108	622	508	248	584.2	7	749.3	12.7	20	2	355	2 1/8	M52	932
24	600	1040	139.7	749	609.6	292	692.2	7	901.7	12.7	20	2 1/2	445	2 5/8	M64	1511

Class 1500 Orifice Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	Welding Neck Length	RF Dia.	RF Height	PCD	Orifice Hole dia	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E	F	G	H	I
1	25	150	38.1	52	33.5	83	50.8	7	101.6	6.4	4	7/8	150	1	M24	5.4
1 1/2	40	180	38.1	70	48.3	89	73	7	123.8	6.4	4	1	160	1 1/8	M27	7.8
2	50	215	38.1	105	60.3	102	92.1	7	165.1	6.4	8	7/8	150	1	M24	11.5
2 1/2	65	245	41.3	124	73	105	104.8	7	190.5	6.4	8	1	165	1 1/8	M27	15.8
3	80	265	47.7	133	88.9	117	127	7	203.2	9.5	8	1 1/8	185	1 1/4	M30	22
4	100	310	54	162	114.3	124	157.2	7	241.3	12.7	8	1 1/4	205	1 3/8	M33	22
6	150	395	82.6	229	168.3	171	215.9	7	317.5	12.7	12	1 3/8	265	1 1/2	M36	70
8	200	485	92.1	292	219.1	213	269.9	7	393.7	12.7	12	1 5/8	300	1 3/4	M42	119
10	250	585	108	368	273	254	323.8	7	482.6	12.7	12	1 7/8	345	1	M48	204
12	300	675	123.9	451	323.8	283	381	7	571.5	12.7	16	2	380	2 1/8	M52	303
14	350	750	133.4	495	355.6	298	412.8	7	635	12.7	16	2 1/4	415	2 3/8	M56	400
16	400	825	146.1	552	406.4	311	469.9	7	704.8	12.7	16	2 1/2	450	2 5/8	M64	510
18	450	915	162	597	457.2	327	533.4	7	774.7	12.7	16	2 3/4	500	2 7/8	M72	738
20	500	985	177.8	641	508	356	584.2	7	831.8	12.7	16	3	545	3 1/8	M76	932
24	600	1170	203.2	762	609.6	406	692.2	7	990.6	12.7	16	3 1/2	620	3 5/8	M90	1511

Class 2500 Orifice Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	Welding Neck Length	RF Dia.	RF Height	PCD	Orifice Hole dia	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E	F	G	H	I
1	25	160	38.1	57	33.5	92	50.8	7	108	6.4	4	7/8	150	1	M24	6.5
1 1/2	40	205	44.5	79	48.3	111	73	7	146	6.4	4	1 1/8	180	1 1/4	M30	13
2	50	235	50.8	95	60.3	127	92.1	7	171.4	6.4	8	1	185	1 1/8	M27	19
2 1/2	65	265	57.2	114	73	143	104.8	7	196.8	6.4	8	1 1/8	205	1 1/4	M30	24
3	80	305	66.7	133	88.9	168	127	7	228.6	9.5	8	1 1/4	230	1 3/8	M33	43
4	100	355	76.2	165	114.3	190	157.2	7	273	12.7	8	1 1/2	260	1 5/8	M39	66
6	150	485	108	235	168.3	273	215.9	7	368.3	12.7	8	2	350	2 1/8	M52	172
8	200	550	127	305	219.1	318	269.9	7	438.2	12.7	12	2	385	2 1/8	M52	261
10	250	675	165.1	375	273	419	323.8	7	539.8	12.7	12	2 1/2	490	2 5/8	M64	485
12	300	760	184.2	441	323.8	464	381	7	619.1	12.7	12	2 3/4	540	2 7/8	M72	730

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Orifice Flanges in Dubai, UAE

Jinay Metals, one of the leading suppliers of Orifice Flanges in Dubai, UAE, offers a wide selection of high-quality flanges suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Copper Nickel Orifice Flanges Price List in West Midland, Copper Nickel Orifice Flanges Supplier in Sharjah, Duplex Steel Orifice Flanges Dealer in Jebel Ali, Alloy Steel Orifice Flanges Supplier in Ajman, Carbon Steel Orifice Flanges Fittings Exporter in Dubai, ANSI B16.5 Alloy Steel Orifice Flanges Size Chart, Monel Orifice Flanges Price in Jebel Ali, Super Duplex Steel Orifice Flanges Thickness, Inconel Orifice Flanges Supplier in West Midland, Carbon Steel Orifice Flanges Stockist in UAE, Titanium Orifice Flanges Exporter in Sharjah

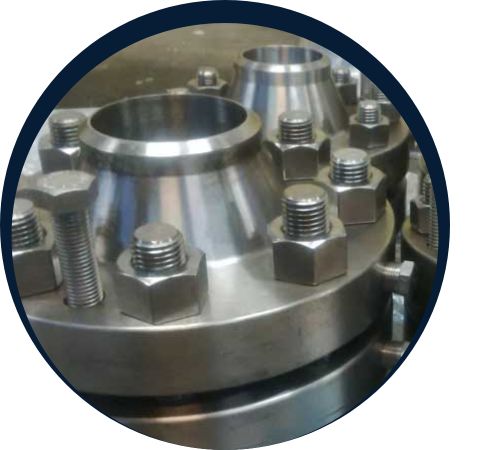

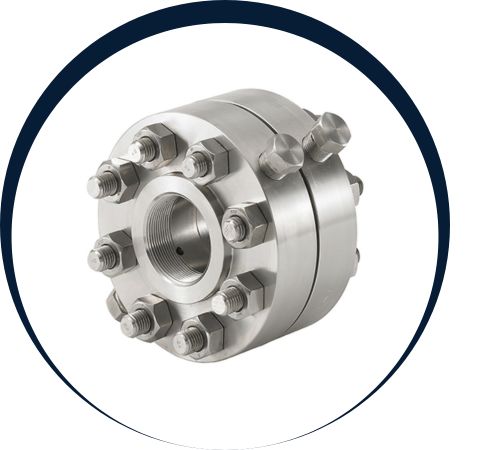

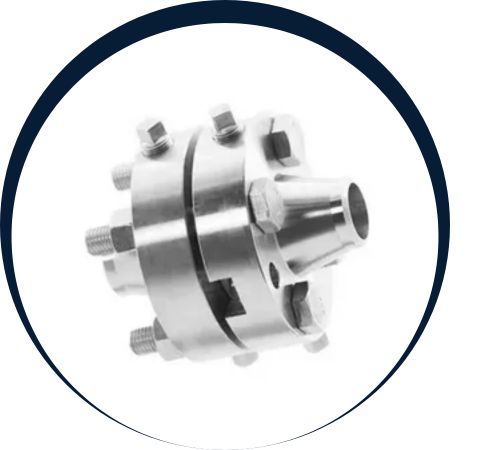

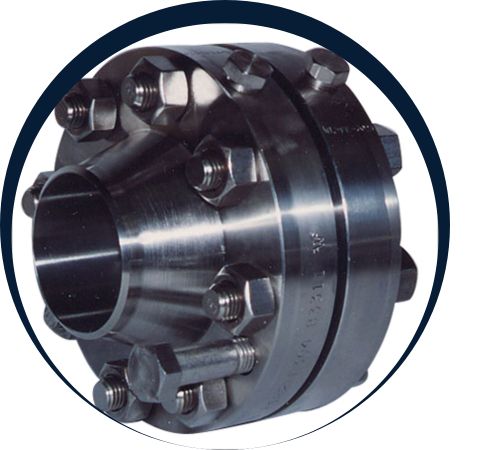

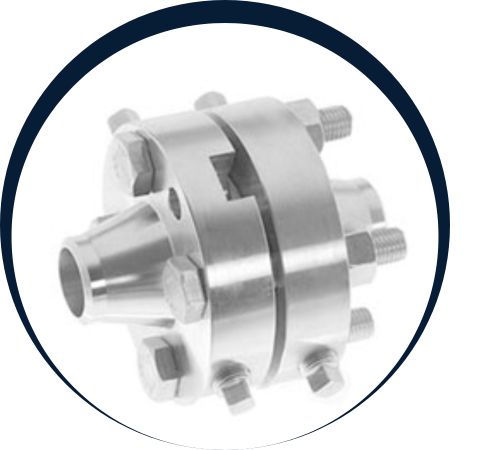

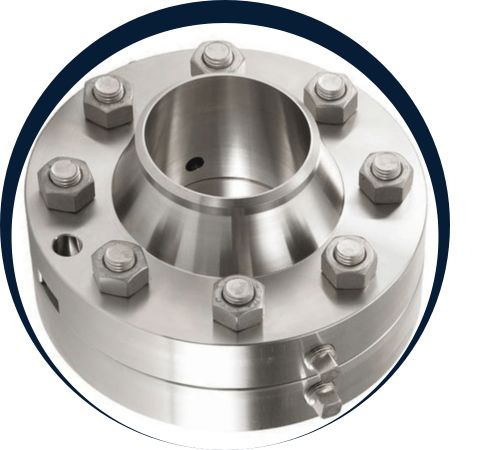

Types of Orifice Flanges

Are Custom Sizes Available for Orifice Flanges?

Yes, we provide Orifice Flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored flanges solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

Monel Orifice Flanges Size Chart, Stainless Steel Orifice Flanges Price in Ajman, Duplex Steel Orifice Flanges Weight Chart, Alloy Steel Orifice Flanges Supplier in Al Ain, Incoloy Orifice Flanges Stockist in Dubai, Inconel Orifice Flanges Supplier in West Midland, Copper Nickel Orifice Flanges Price List in Ajman, Alloy Steel Orifice Flanges Exporter in UAE, Carbon Steel Orifice Flanges Exporter in Ras Al Khaimah, Titanium Orifice Flanges Exporter in West Midland, ANSI B16.5 Monel Orifice Flanges in Dubai

Orifice Flanges are typically found in piping systems to measure and manage the flow rate of liquids, gases, or steam. They are used in the oil or gas, petrochemical, power generation, chemical processing, and water treatment industries. Their purpose is to secure an orifice plate in between sections of pipe to enable accurate measurement of flow and pressure. Common applications are flow meters, process control, and energy management systems. Orifice Flanges are critical components in industrial flow measurement equipment due to their durable construction, corrosion resistance, and suitability for operation with a range of pressure ratings.
