Jinay Metals is a trusted manufacturer and supplier of square flanges, located in Dubai, UAE. Our square flanges incorporate quality, strength, precision, and reliability, ensuring a robust design for a secure and leak-proof connection in any piping system, while easily accommodating a wide range of pressure. We manufacture our square flanges from premium materials and using state of the art technologies – all our square flanges are fully compliant with international standards for quality. Jinay Metals provides products to the oil and gas, petrochemical, water treatment, and power generation industries, while steadfastly maintaining our commitment to excellence, durability, and customer satisfaction in every product.
Square flanges are made from high quality materials including carbon steel, stainless steel, and alloy steel for strength, durability, and corrosion resistance. They typically have a chemical composition of carbon, manganese, silicon, chromium, nickel, and molybdenum, which provide improvement in toughness and performance. Square flanges have excellent tensile strength, yield strength, hardness, and elongation for high- and low-pressure applications. Square flanges are designed for simple installations and alignment, and provide leak-proof joints, long service life, and reliable service in tough applications in industrial piping and hydraulic piping systems.

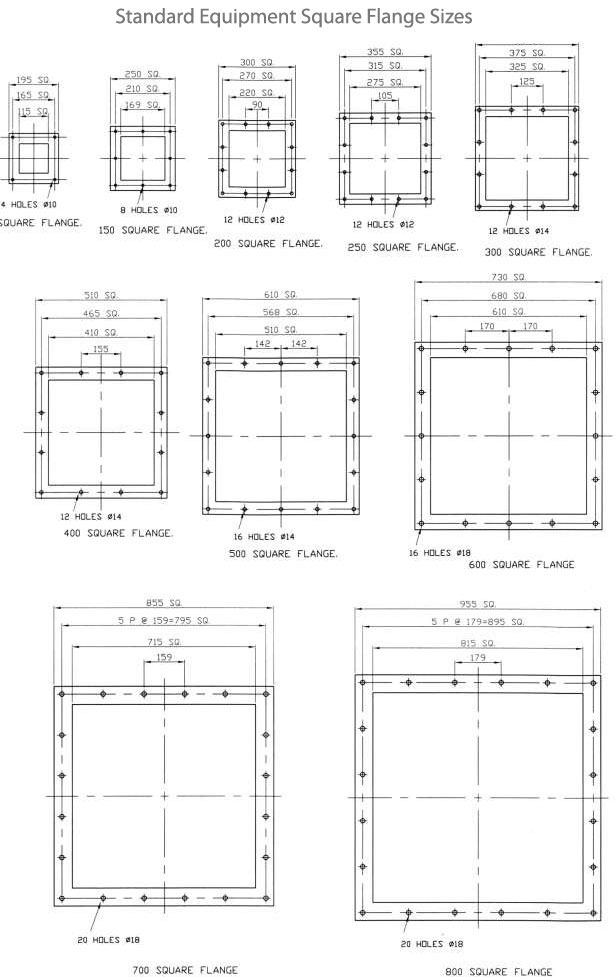

| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Square Face (FF) |
| Special design |
As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

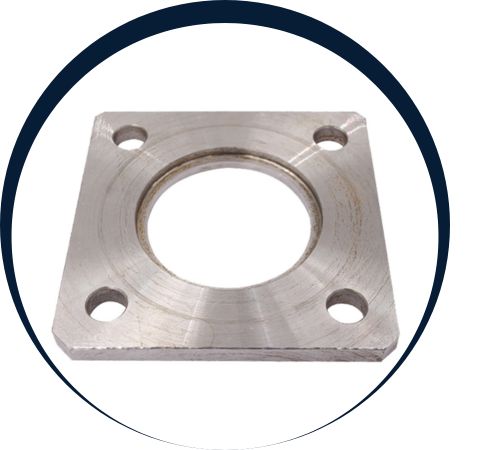

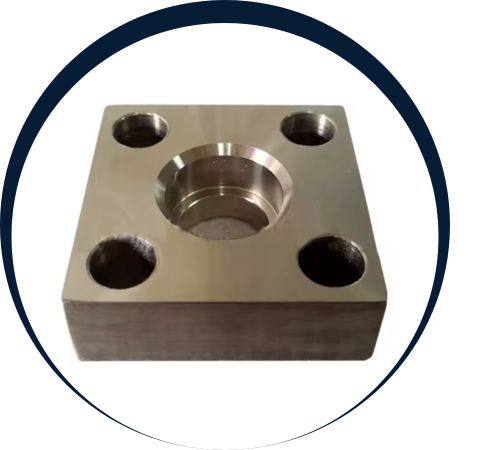

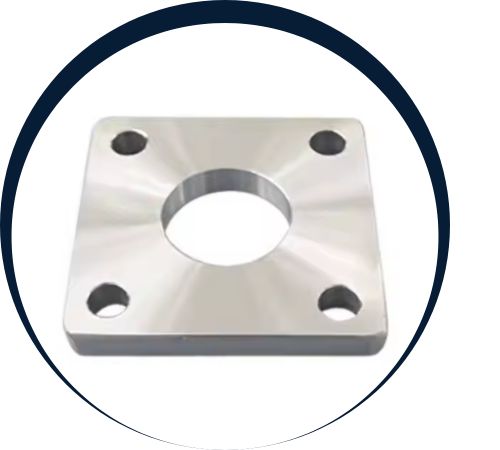

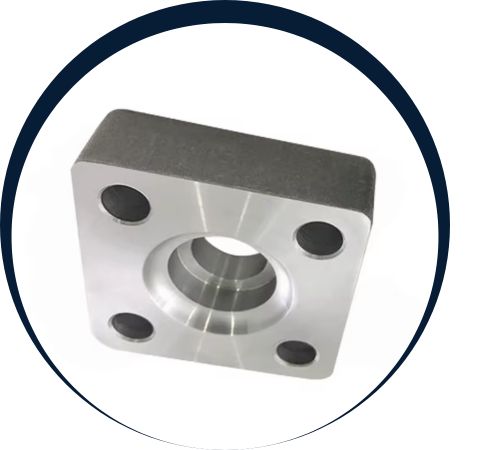

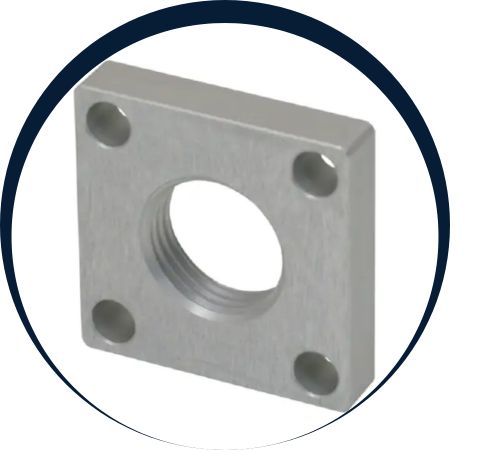

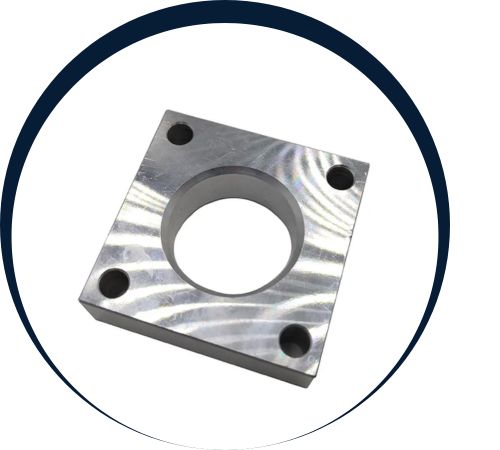

| Material | Titanium Square Flange, Incoloy Square Flange, Monel Square Flange, Nickel Alloy Square Flange, SMO 254 Square Flange, Brass Square Flange, Stainless Steel Square Flange, AISI 4130 Square Flange, Inconel Square Flange, Duplex Steel Square Flange, Hastelloy Square Flange, Alloy 20 Square Flange, Copper Nickel Square Flange, Super Duplex Square Flange. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Square Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These Flanges are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise. Jinay Metals providing reliable and high-performance Square Flanges tailored to meet your specific operational and project requirements.
Jinay Metals, one of the leading suppliers of Square Flanges in Dubai, UAE, offers a wide selection of high-quality flanges suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide Square Flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored flanges solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Square flanges are often found on high-pressure hydraulic lines, fluid transfer piping systems, and applications where fluid is transferred over long distances in offshore conditions. Square flanges provide an easy way to assemble and disassemble equipment in maintenance situations. A four-bolt flange design allows assembly of flanged connections while maintaining their tight connection under high-pressure conditions or while subject to constant vibration. Square flanges are commonly the connector of choice for installations in limited-space applications and provide a way to connect with seamless and welded piping. They provide high reliability in challenging working conditions.
