Jinay Metals is a reliable manufacturer and supplier located in Dubai, UAE, offering Blind Flanges of the highest quality. Used to close or seal the ends of pipe systems. Our flanges are leak-proof and durable for use in high pressure and temperature applications. Our Blind Flanges are made from premium grade materials to international standards and are suitable for a wide range of industrial applications. We serve the oil & gas, petrochemical, power, and construction sectors. Jinay Metals rates customer satisfaction as key by supplying reliable products with prompt service across the UAE and beyond.
Blind Flanges are built using materials that guarantee strength, longevity, and resistance to corrosion, such as stainless steel, carbon steel, and alloy steel. Their typical chemical makeup consists of iron, carbon, chromium, nickel, and molybdenum, which imparts excellent mechanical and thermal properties. The flanges show tensile strength of 400–800 MPa and yield strength of 250–550 MPa, with good ductility and toughness. Designed for high pressure and temperature applications, Blind Flanges provide leak-proof sealing capability and performance reliability for a range of industrial and process piping applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Blind Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These Flanges are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise. Jinay Metals providing reliable and high-performance Blind Flanges tailored to meet your specific operational and project requirements.

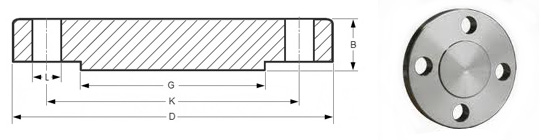

| ANSI/ASME/ASA B16.5 150lb/sq.in. Flange BLIND-RF | |||||||
| ø | D | b | g | k | Holes | l | Kg. |
| 1/2″ | 88,9 | 11,1 | 34,9 | 60,3 | 4 | 15,9 | 0,400 |
| 3/4″ | 98,4 | 12,7 | 42,9 | 69,8 | 4 | 15,9 | 0,700 |
| 1″ | 107,9 | 14,3 | 50,8 | 79,4 | 4 | 15,9 | 0,900 |
| 1 1/4″ | 117,5 | 15,9 | 63,5 | 88,9 | 4 | 15,9 | 1,300 |
| 1 1/2″ | 127,0 | 17,5 | 73,0 | 98,4 | 4 | 15,9 | 1,600 |
| 2″ | 152,4 | 19,0 | 92,1 | 120,6 | 4 | 19,0 | 2,600 |
| 2 1/2″ | 177,8 | 22,2 | 104,8 | 139,4 | 4 | 19,0 | 4,100 |
| 3″ | 190,5 | 23,8 | 127,0 | 152,4 | 4 | 19,0 | 5,000 |
| 3 1/2″ | 215,9 | 23,8 | 139,7 | 177,8 | 8 | 19,0 | 6,400 |
| 4″ | 228,6 | 23,8 | 157,2 | 190,5 | 8 | 19,0 | 7,100 |
| 5″ | 254,0 | 23,8 | 185,7 | 215,9 | 8 | 22,2 | 9,000 |
| 6″ | 279,4 | 25,4 | 215,9 | 241,3 | 8 | 22,2 | 11,800 |
| 8″ | 342,9 | 28,6 | 269,9 | 298,4 | 8 | 22,2 | 21,000 |
| 10″ | 406,4 | 30,2 | 323,4 | 361,9 | 12 | 25,4 | 30,000 |
| 12″ | 482,6 | 31,7 | 381,0 | 431,8 | 12 | 25,4 | 45,000 |
| 14″ | 533,4 | 34,9 | 412,7 | 476,2 | 12 | 28,6 | 59,000 |
| 16″ | 596,9 | 36,5 | 469,9 | 539,9 | 16 | 28,6 | 79,000 |
| 18″ | 635,0 | 39,7 | 533,4 | 577,8 | 16 | 31,7 | 97,000 |
| 20″ | 698,5 | 42,9 | 584,2 | 635,0 | 20 | 31,7 | 124,000 |
| 22″ | 749,3 | 46,0 | 641,2 | 692,1 | 20 | 34,9 | 151,000 |
| 24″ | 812,8 | 47,6 | 692,1 | 749,3 | 20 | 34,9 | 188,000 |
| ANSI/ASME/ASA B16.5 300lb/sq.in. Flange BLIND-RF | |||||||
| ø | D | b | g | k | Holes | l | Kg. |
| 1/2″ | 95,2 | 14,3 | 34,9 | 66,7 | 4 | 15,9 | 0,700 |
| 3/4″ | 117,5 | 15,9 | 42,9 | 82,5 | 4 | 19,0 | 1,200 |
| 1″ | 123,8 | 17,5 | 50,8 | 88,9 | 4 | 19,0 | 1,500 |
| 1 1/4″ | 133,3 | 19,0 | 63,5 | 98,4 | 4 | 19,0 | 2,000 |
| 1 1/2″ | 155,6 | 20,6 | 73,0 | 114,3 | 4 | 22,2 | 2,900 |
| 2″ | 165,1 | 22,2 | 92,1 | 127,0 | 8 | 19,0 | 3,400 |
| 2 1/2″ | 190,5 | 25,4 | 104,8 | 149,2 | 8 | 22,2 | 5,100 |
| 3″ | 209,5 | 28,6 | 127,0 | 168,3 | 8 | 22,2 | 7,000 |
| 3 1/2″ | 228,6 | 30,2 | 139,7 | 184,1 | 8 | 22,2 | 8,900 |
| 4″ | 254,0 | 31,7 | 157,2 | 200,0 | 8 | 22,2 | 11,800 |
| 5″ | 279,4 | 34,9 | 185,7 | 234,9 | 8 | 22,2 | 15,500 |
| 6″ | 317,5 | 36,5 | 215,9 | 269,9 | 12 | 22,2 | 21,300 |
| 8″ | 381,0 | 41,3 | 269,9 | 330,2 | 12 | 25,4 | 35,200 |
| 10″ | 444,5 | 47,6 | 323,8 | 387,3 | 16 | 28,6 | 57,000 |
| 12″ | 520,7 | 50,8 | 381,0 | 450,8 | 16 | 31,7 | 82,000 |
| 14″ | 584,2 | 54,0 | 412,7 | 514,3 | 20 | 31,7 | 106,000 |
| 16″ | 647,7 | 57,1 | 469,9 | 571,5 | 20 | 34,9 | 140,000 |
| 18″ | 711,2 | 60,3 | 533,4 | 628,6 | 24 | 34,9 | 178,000 |
| 20″ | 774,7 | 63,5 | 584,2 | 685,8 | 24 | 34,9 | 223,000 |
| 22″ | 838,2 | 66,7 | 641,2 | 742,9 | 24 | 41,3 | 270,000 |
| 24″ | 914,4 | 69,8 | 692,1 | 812,8 | 24 | 41,3 | 345,000 |
| ANSI/ASME/ASA B16.5 600lb/sq.in. Flange BLIND-RF | |||||||
| ø | D | b | g | k | Holes | l | Kg. |
| 1/2″ | 95,2 | 14,3 | 34,9 | 66,7 | 4 | 15,9 | 0,700 |
| 3/4″ | 117,5 | 15,9 | 42,9 | 82,5 | 4 | 19,0 | 1,200 |
| 1″ | 123,8 | 17,5 | 50,8 | 88,9 | 4 | 19,0 | 1,500 |
| 1 1/4″ | 133,3 | 20,6 | 63,5 | 98,4 | 4 | 19,0 | 2,000 |
| 1 1/2″ | 155,6 | 22,2 | 73,0 | 114,3 | 4 | 22,2 | 3,200 |
| 2″ | 165,1 | 25,4 | 92,1 | 127,0 | 8 | 19,0 | 4,300 |
| 2 1/2″ | 190,5 | 28,6 | 104,8 | 149,2 | 8 | 22,2 | 6,000 |
| 3″ | 209,5 | 31,7 | 127,0 | 168,3 | 8 | 22,2 | 8,000 |
| 3 1/2″ | 228,6 | 34,9 | 139,7 | 184,1 | 8 | 25,4 | 10,500 |
| 4″ | 273,0 | 38,1 | 157,2 | 215,9 | 8 | 25,4 | 18,000 |
| 5″ | 330,2 | 44,4 | 185,7 | 266,7 | 8 | 28,6 | 28,500 |
| 6″ | 355,6 | 47,6 | 215,9 | 292,1 | 12 | 28,6 | 35,500 |
| 8″ | 419,1 | 55,6 | 269,9 | 349,2 | 12 | 31,7 | 58,000 |
| 10″ | 508,0 | 63,5 | 323,8 | 431,8 | 16 | 34,9 | 98,000 |
| 12″ | 558,8 | 66,7 | 381,0 | 488,9 | 20 | 34,9 | 125,000 |
| 14″ | 603,2 | 69,8 | 412,7 | 527,0 | 20 | 38,1 | 151,000 |
| 16″ | 685,8 | 76,2 | 469,9 | 603,2 | 20 | 41,3 | 215,000 |
| 18″ | 742,9 | 82,5 | 533,4 | 654,0 | 20 | 44,4 | 287,000 |
| 20″ | 812,8 | 88,9 | 584,2 | 723,9 | 24 | 44,4 | 366,000 |
| 22″ | 869,9 | 95,2 | 641,2 | 777,9 | 24 | 47,6 | 437,000 |
| 24″ | 939,8 | 101,6 | 692,1 | 838,2 | 24 | 50,8 | 532,000 |
Jinay Metals, one of the leading suppliers of Blind Flanges in Dubai, UAE, offers a wide selection of high-quality flanges suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide Blind Flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored flanges solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Blind Flanges are commonly found in most piping systems, valves, or openings of pressure vessels, where they serve to seal or close the ends of the respective items. Blind flanges are used in applications throughout many different industries, such as oil and gas, petrochemical, power generation, chemical processing, and water treatment. Blind flanges, when required, allow for easy access for inspecting, ensuring maintenance, or modifying pipelines, without concern over leaks to the system. Blind flanges are also well suited for high-pressure and high-temperature applications, where need to ensure secure closure. Blind flanges are typically high-quality and strong, and can also withstand a corrosive or aggressive environment, making them ideal for onshore and offshore applications, where pipeline equipment is exposed to difficult and extreme conditions supporting long-term and dependable performance.
