Forged Flanges

Home > Forged Flanges

Forged Flanges Manufacturer, Supplier and Exporter in Dubai, UAE

Jinay Metals is a leading manufacturer and supplier of premium quality Forged Flanges in Dubai, UAE. Our forged flanges are engineered for strength, accuracy, and durability, and are made to withstand higher pressure and temperature. The forged flanges are manufactured with premium grade materials and advanced forging technology, and are designed and manufactured to meet international standards for performance and reliability. Jinay Metals offers their Forged Flanges to oil & gas, petrochemical, power, construction, and many other industries. The dedicated focus of Jinay Metals is to provide high-quality products installed quickly and to offer complete customer satisfaction in the UAE and beyond.

Stainless Steel Forged Flanges Price List in Dubai, Copper Nickel Forged Flanges Distributor in West Midland, Super Duplex Steel Forged Flanges Supplier in Jebel Ali, ANSI B16.5 Forged Flanges Sizes in mm, Nickel Alloy Forged Flanges Manufacturer in Ajman, Carbon Steel Forged Flanges Thickness, Super Duplex Steel Forged Flanges Supplier in Sharjah, SMO 254 Forged Flanges Exporter in Dubai, Hastelloy Forged Flanges Supplier in West Midland

Forged Flanges are produced using high-strength materials like carbon steel, stainless steel, and alloyed steel to achieve optimal performance in extreme applications. They typically consist of iron, carbon, manganese, chromium, nickel, and molybdenum, which provide excellent resistance to corrosion and mechanical stability. The forged flanges have excellent mechanical properties with tensile strength from 450 – 850 MPa and yield strength of 250 – 600 MPa. Forge processes improve grain structure, toughness, and fatigue resistance making them suitable for high-pressure, high-temperature, and critical industrial piping applications that require maximum durability and reliability.

Forged Flanges Specification

Size	½” TO 54″
Pressure Rating	150#, 300#, 600#, 900#, 1500#, 2500#
Standards	ASME B 16.5, ASME B 16.47, API 6A
Type	SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials	Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ANSI B16.5 Nickel Alloy Forged Flanges in Sharjah, Duplex Steel Forged Flanges Distributor in Ajman, Alloy Steel Forged Flanges Supplier in Sharjah, Copper Nickel Alloy Forged Flanges Weight Chart, Incoloy Forged Flanges Exporter in Jebel Ali, SS Forged Flanges Manufacturer in Ajman, Duplex Steel Forged Flanges Price List in Dubai, Hastelloy Forged Flanges Sizes in mm, Monel Forged Flanges Distributor in Jebel Ali

Why Choose Forged Flanges from Jinay Metals?

Choosing Forged Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These Flanges are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise. Jinay Metals providing reliable and high-performance Forged Flanges tailored to meet your specific operational and project requirements.

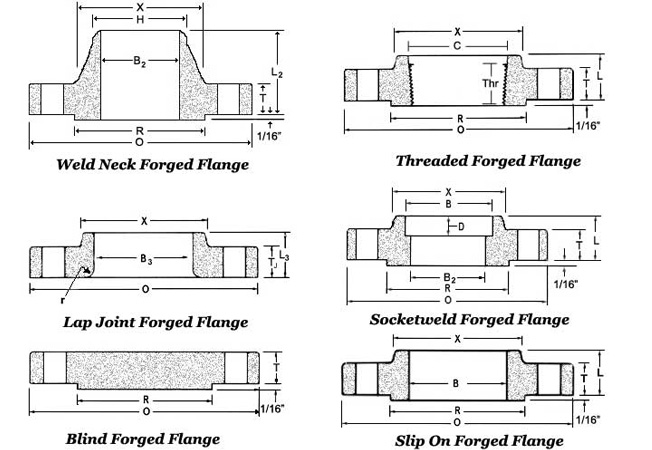

Class 150 Forged Flanges Dimensions

Class 150 Forged Flange Dimensions

Nom. Pipe Size	O	T	TJ	R	X	#/Dia of Holesa	Bolt Circle Dia	B	B2b	B3	H	L	L2	L3c	R	D	Thr
½	3.50	0.38	0.44	1.38	1.19	4-0.62	2.38	0.88	0.62	0.90	0.84	0.56	1.81	0.62	0.12	0.38	0.62
¾	3.88	0.44	0.50	1.69	1.50	4-0.62	2.75	1.09	0.82	1.11	1.05	0.56	2.00	0.62	0.12	0.44	0.62
1	4.25	0.50	0.56	2.00	1.94	4-0.62	3.12	1.36	1.05	1.38	1.32	0.62	2.12	0.69	0.12	0.50	0.69
1¼	4.62	0.56	0.62	2.50	2.31	4-0.62	3.50	1.70	1.38	1.72	1.66	0.75	2.19	0.81	0.19	0.56	0.81
1½	5.00	0.62	0.69	2.88	2.56	4-0.62	3.88	1.95	1.61	1.97	1.90	0.81	2.38	0.88	0.25	0.62	0.88
2	6.00	0.69	0.75	3.62	3.06	4-0.75	4.75	2.44	2.07	2.46	2.38	0.94	2.44	1.00	0.31	0.69	1.00
2½	7.00	0.81	0.88	4.12	3.56	4-0.75	5.50	2.94	2.47	2.97	2.88	1.06	2.69	1.12	0.31	0.75	1.12
3	7.50	0.88	0.94	5.00	4.25	4-0.75	6.00	3.57	3.07	3.60	3.50	1.12	2.69	1.19	0.38	0.81	1.19
3½	8.50	0.88	0.94	5.50	4.81	8-0.75	7.00	4.07	3.55	4.10	4.00	1.19	2.75	1.25	0.38	0.88	1.25
4	9.00	0.88	0.94	6.19	5.31	8-0.75	7.50	4.57	4.03	4.60	4.50	1.25	2.94	1.31	0.44	0.94	1.31
5	10.00	0.88	0.94	7.31	6.44	8-0.88	8.50	5.66	5.05	5.69	5.56	1.38	3.44	1.44	0.44	0.94	1.44
6	11.00	0.94	1.00	8.50	7.56	8-0.88	9.50	6.72	6.07	6.75	6.63	1.50	3.44	1.56	0.50	1.06	1.56
8	13.50	1.06	1.12	10.62	9.69	8-0.88	11.75	8.72	7.98	8.75	8.63	1.69	3.94	1.75	0.50	1.25	1.75
10	16.00	1.12	1.19	12.75	12.00	12-1.00	14.25	10.88	10.02	10.92	10.75	1.88	3.94	1.94	0.50	1.31	1.94
12	19.00	1.19	1.25	15.00	14.38	12-1.00	17.00	12.88	12.00	12.92	12.75	2.12	4.44	2.19	0.50	1.56	2.19
14	21.00	1.31	1.38	16.25	15.75	12-1.12	18.75	14.14	13.25	14.18	14.00	2.19	4.94	3.12	0.50	1.63	2.25
16	23.50	1.38	1.44	18.50	18.00	16-1.12	21.25	16.16	15.25	16.19	16.00	2.44	4.94	3.44	0.50	1.75	2.50
18	25.00	1.50	1.56	21.00	19.88	16-1.25	22.75	18.18	17.25	18.20	18.00	2.62	5.44	3.81	0.50	1.94	2.69
20	27.50	1.62	1.69	23.00	22.00	20-1.25	25.00	20.20	19.25	20.25	20.00	2.81	5.62	4.06	0.50	2.13	2.88
22	29.50	1.75	1.81	25.25	24.25	20-1.38	27.25	22.22	21.25	22.25	22.00	3.07	5.82	4.25	0.50	2.38	3.13
24	32.00	1.81	1.88	27.25	26.12	20-1.38	29.50	24.25	23.25	24.25	24.00	3.19	5.94	4.38	0.50	2.50	3.25

Class 300 Forged Flange Dimensions

Nom. Pipe Size	O	T	TJ	R	X	#/Dia of Holesa	Bolt Circle Dia	B	B2b	B3	H	L	L2	L3c	R	C	D	Thr
½	3.75	0.50	0.56	1.38	1.50	4-0.63	2.62	0.88	0.62	0.90	0.84	0.81	2.00	0.88	0.12	0.93	0.38	0.62
¾	4.62	0.56	0.62	1.69	1.88	4-0.75	3.25	1.09	0.82	1.11	1.05	0.94	2.19	1.00	0.12	1.14	0.44	0.62
1	4.88	0.62	0.69	2.00	2.12	4-0.75	3.50	1.36	1.05	1.38	1.32	1.00	2.38	1.06	0.12	1.41	0.50	0.69
1¼	5.25	0.69	0.75	2.50	2.50	4-0.75	3.88	1.70	1.38	1.72	1.66	1.00	2.50	1.06	0.19	1.75	0.56	0.81
1½	6.12	0.75	0.81	2.88	2.75	4-0.88	4.50	1.95	1.61	1.97	1.90	1.13	2.63	1.19	0.25	1.98	0.62	0.88
2	6.50	0.81	0.88	3.62	3.31	8-0.75	5.00	2.44	2.07	2.46	2.38	1.25	2.69	1.31	0.31	2.50	0.69	1.12
2½	7.50	0.94	1.00	4.12	3.94	8-0.88	5.88	2.94	2.47	2.97	2.88	1.44	2.94	1.50	0.31	3.00	0.75	1.25
3	8.25	1.06	1.12	5.00	4.62	8-0.88	6.62	3.57	3.07	3.60	3.50	1.63	3.06	1.69	0.38	3.63	0.81	1.25
3½	9.00	1.12	1.19	5.50	5.25	8-0.88	7.25	4.07	3.55	4.10	4.00	1.69	3.13	1.75	0.38	4.13		1.44
4	10.00	1.19	1.25	6.19	5.75	8-0.88	7.88	4.57	4.03	4.60	4.50	1.82	3.32	1.88	0.44	4.63		1.44
5	11.00	1.31	1.38	7.31	7.00	8-0.88	9.25	5.66	5.05	5.69	5.56	1.94	3.82	2.00	0.44	5.69		1.69
6	12.50	1.38	1.44	8.50	8.12	12-0.88	10.62	6.72	6.07	6.75	6.63	2.00	3.82	2.06	0.50	6.75		1.81
8	15.00	1.56	1.62	10.62	10.25	12-1.00	13.00	8.72	7.98	8.75	8.63	2.38	4.32	2.44	0.50	8.75		2.00
10	17.50	1.81	1.88	12.75	12.62	16-1.12	15.25	10.88	10.02	10.92	10.75	2.56	4.56	3.75	0.50	10.88		2.19
12	20.50	1.94	2.00	15.00	14.75	16-1.25	17.75	12.88	12.00	12.92	12.75	2.82	5.06	4.00	0.50	12.94		2.38
14	23.00	2.06	2.12	16.25	16.75	20-1.25	20.25	14.14	13.25	14.18	14.00	2.94	5.56	4.38	0.50	14.19		2.50
16	25.50	2.19	2.25	18.50	19.00	20-1.38	22.50	16.16	15.25	16.19	16.00	3.19	5.69	4.75	0.50	16.19		2.69
18	28.00	2.31	2.38	21.00	21.00	24-1.38	24.75	18.18	17.25	18.20	18.00	3.44	6.19	5.12	0.50	18.19		2.75
20	30.50	2.44	2.50	23.00	23.12	24-1.38	27.00	20.20	19.25	20.25	20.00	3.69	6.32	5.50	0.50	20.19		2.88
22	33.00	2.57	2.63	25.25	25.25	24-1.63	29.25	22.22	21.25	22.25	22.00	3.93	6.43	5.75	0.50	22.19		3.13
24	36.00	2.69	2.75	27.25	27.62	24-1.63	32.00	24.25	23.25	24.25	24.00	4.13	6.56	6.00	0.50	24.19		3.25

Class 400 Forged Flange Dimensions

Nom. Pipe Size	O	T	R	X	#/Dia of Holesa	Bolt Circle Dia	B	B3	H	L	L2	L3c	r	C	D	Thr
½	3.75	0.56	1.38	1.5	4-0.63	2.62	0.88	0.9	0.84	0.88	2.06	0.88	0.12	0.93	0.38	0.62
¾	4.62	0.62	1.69	1.88	4-0.75	3.25	1.09	1.11	1.05	1	2.25	1	0.12	1.14	0.44	0.62
1	4.88	0.69	2	2.12	4-.075	3.5	1.36	1.38	1.32	1.06	2.44	1.06	0.12	1.41	0.5	0.69
1¼	5.25	0.81	2.5	2.5	4-0.75	3.88	1.7	1.72	1.66	1.12	2.62	1.12	0.19	1.75	0.56	0.81
1½	6.12	0.88	2.88	2.75	4-0.88	4.5	1.95	1.97	1.9	1.25	2.75	1.25	0.25	1.99	0.62	0.88
2	6.5	1	3.62	3.31	8-0.75	5	2.44	2.46	2.38	1.44	2.88	1.44	0.31	2.5	0.69	1.12
2½	7.5	1.12	4.12	3.94	8-0.88	5.88	2.94	2.97	2.88	1.62	3.12	1.62	0.31	3	0.75	1.25
3	8.25	1.25	5	4.62	8-0.88	6.62	3.57	3.6	3.5	1.81	3.25	1.81	0.38	3.63	0.81	1.38
3½	9	1.38	5.5	5.25	8-1.00	7.25	4.07	4.1	4	1.94	3.38	1.94	0.38	4.13		1.56
4	10	1.38	6.19	5.75	8-1.00	7.88	4.57	4.6	4.5	2	3.5	2	0.44	4.63		1.44
5	11	1.5	7.31	7	8-1.00	9.25	5.66	5.69	5.56	2.12	4	2.12	0.44	5.69		1.69
6	12.5	1.62	8.5	8.12	12-1.00	10.62	6.72	6.75	6.63	2.25	4.06	2.25	0.5	6.75		1.81
8	15	1.88	10.62	10.25	12-1.12	13	8.72	8.75	8.63	2.69	4.62	2.69	0.5	8.75		2
10	17.5	2.12	12.75	12.62	16-1.25	15.25	10.88	10.92	10.75	2.88	4.88	4	0.5	10.88		2.19
12	20.5	2.25	15	14.75	16-1.38	17.75	12.88	12.92	12.75	3.12	5.38	4.25	0.5	12.94		2.38
14	23	2.38	16.25	16.75	20-1.38	20.25	14.14	14.18	14	3.31	5.88	4.62	0.5	14.19		2.5
16	25.5	2.5	18.5	19	20-1.50	22.5	16.16	16.19	16	3.69	6	5	0.5	16.19		2.69
18	28	2.62	21	21	24-1.50	24.75	18.18	18.2	18	3.88	6.5	5.38	0.5	18.19		2.75
20	30.5	2.75	23	23.12	24-1.62	27	20.2	20.25	20	4	6.62	5.75	0.5	20.19		2.88
22	33	2.88	25.25	25.25	24-1.75	29.25	22.22	22.25	22	4.25	6.75	6	0.5			—
24	36	3	27.25	27.62	24-1.88	32	24.25	24.25	24	4.5	6.88	6.25	0.5	24.19		3.25

Class 600 Forged Flange Dimensions

Nom. Pipe Size	O	T	R	X	#/Dia of Holesa	Bolt Circle Dia	B	B3	H	L	L2	L3c	r	C	D	Thr
½	3.75	0.56	1.38	1.5	4-0.63	2.62	0.88	0.9	0.84	0.88	2.06	0.88	0.12	0.93	0.38	0.62
¾	4.62	0.62	1.69	1.88	4-0.75	3.25	1.09	1.11	1.05	1	2.25	1	0.12	1.14	0.44	0.62
1	4.88	0.69	2	2.12	4-0.75	3.5	1.36	1.38	1.32	1.06	2.44	1.06	0.12	1.41	0.5	0.69
1¼	5.25	0.81	2.5	2.5	4-0.75	3.88	1.7	1.72	1.66	1.12	2.62	1.12	0.19	1.75	0.56	0.81
1½	6.12	0.88	2.88	2.75	4-0.88	4.5	1.95	1.97	1.9	1.25	2.75	1.25	0.25	1.99	0.62	0.88
2	6.5	1	3.62	3.31	8-0.75	5	2.44	2.46	2.38	1.44	2.88	1.44	0.31	2.5	0.69	1.12
2½	7.5	1.12	4.12	3.94	8-0.88	5.88	2.94	2.97	2.88	1.62	3.12	1.62	0.31	3	0.75	1.25
3	8.25	1.25	5	4.62	8-0.88	6.62	3.57	3.6	3.5	1.81	3.25	1.81	0.38	3.63	0.81	1.38
3½	9	1.38	5.5	5.25	8-1.00	7.25	4.07	4.1	4	1.94	3.38	1.94	0.38	4.13		1.56
4	10.75	1.5	6.19	6	8-1.00	8.5	4.57	4.6	4.5	2.12	4	2.12	0.44	4.63		1.62
5	13	1.75	7.31	7.44	8-1.12	10.5	5.66	5.69	5.56	2.38	4.5	2.38	0.44	5.69		1.88
6	14	1.88	8.5	8.75	12-1.12	11.5	6.72	6.75	6.63	2.62	4.62	2.62	0.5	6.75		2
8	16.5	2.19	10.62	10.75	12-1.25	13.75	8.72	8.75	8.63	3	5.25	3	0.5	8.75		2.25
10	20	2.5	12.75	13.5	16-1.38	17	10.88	10.92	10.75	3.38	6	4.38	0.5	10.88		2.56
12	22	2.62	15	15.75	20-1.38	19.25	12.88	12.92	12.75	3.62	6.12	4.62	0.5	12.94		2.75
14	23.75	2.75	16.25	17	20-1.50	20.75	14.14	14.18	14	3.69	6.5	5	0.5	14.19		2.88
16	27	3	18.5	19.5	20-1.63	23.75	16.16	16.19	16	4.19	7	5.5	0.5	16.19		3.06
18	29.25	3.25	21	21.5	20-1.75	25.75	18.18	18.2	18	4.62	7.25	6	0.5	18.19		3.12
20	32	3.5	23	24	24-1.75	28.5	20.2	20.25	20	5	7.5	6.5	0.5	20.19		3.25
22	34.25	3.75	25.25	26.25	24-1.75	30.63	22.22	22.25	22	5.25	7.75	6.88	0.5			—
24	37	4	27.25	28.25	24-2.00	33	24.25	24.25	24	5.5	8	7.25	0.5	24.19		3.62

Class 900 Forged Flange Dimensions

Nom. Pipe Size	O	T	R	X	#/Dia of Holesa	Bolt Circle Dia	B	B3	H	L	L2	L3c	r	C	Thr
Sizes 1/2″ through 2 1/2″ are identical to class 1500.
3	9.5	1.5	5	5	8-1.00	7.5	3.57	3.6	3.5	2.12	4	2.12	0.38	3.63	1.62
4	11.5	1.75	6.19	6.25	8-1.25	9.25	4.57	4.6	4.5	2.75	4.5	2.75	0.44	4.63	1.88
5	13.75	2	7.31	7.5	8-1.38	11	5.66	5.69	5.56	3.12	5	3.12	0.44	5.69	2.12
6	15	2.19	8.5	9.25	12-1.25	12.5	6.72	6.75	6.63	3.38	5.5	3.38	0.5	6.75	2.25
8	18.5	2.5	10.63	11.75	12-1.50	15.5	8.72	8.75	8.63	4	6.38	4.5	0.5	8.75	2.5
10	21.5	2.75	12.75	14.5	16-1.50	18.5	10.88	10.92	10.75	4.25	7.25	5	0.5	10.88	2.81
12	24	3.12	15	16.5	20-1.50	21	12.88	12.92	12.75	4.63	7.88	5.62	0.5	12.94	3
14	25.25	3.38	16.25	17.75	20-1.63	22	14.14	14.18	14	5.12	8.38	6.12	0.5	14.19	3.25
16	27.75	3.5	18.5	20	20-1.75	24.25	16.16	16.19	16	5.25	8.5	6.5	0.5	16.19	3.38
18	31	4	21	22.25	20-2.00	27	18.18	18.2	18	6	9	7.5	0.5	18.19	3.5
20	33.75	4.25	23	24.5	20-2.13	29.5	20.2	20.25	20	6.25	9.75	8.25	0.5	20.19	3.62
24	41	5.5	27.25	29.5	20-2.63	35.5	24.25	24.25	24	8	11.5	10.5	0.5	24.19	4

Class 1500 Forged Flange Dimensions

Nom. Pipe Size	O	T	R	X	#/Dia of Holesa	Bolt Circle Dia	B	B3	H	L	L2	L3c	r	C	D	Thr
½	4.75	0.88	1.38	1.5	4-0.88	3.25	0.88	0.9	0.84	1.25	2.38	1.25	0.12	0.93	0.38	0.88
¾	5.12	1	1.69	1.75	4-0.88	3.5	1.09	1.11	1.05	1.38	2.75	1.38	0.12	1.14	0.44	1
1	5.88	1.12	2	2.06	4-1.00	4	1.36	1.38	1.32	1.62	2.88	1.62	0.12	1.41	0.5	1.12
1¼	6.25	1.12	2.5	2.5	4-1.00	4.38	1.7	1.72	1.66	1.62	2.88	1.62	0.19	1.75	0.56	1.19
1½	7	1.25	2.88	2.75	4-1.12	4.88	1.95	1.97	1.9	1.75	3.25	1.75	0.25	1.99	0.62	1.25
2	8.5	1.5	3.63	4.12	8-1.00	6.5	2.44	2.46	2.38	2.25	4	2.25	0.31	2.5	0.69	1.5
2½	9.62	1.62	4.13	4.88	8-1.12	7.5	2.94	2.97	2.88	2.5	4.12	2.5	0.31	3	0.75	1.88
3	10.5	1.88	5	5.25	8-1.25	8		3.6	3.5		4.62	2.88	0.38
4	12.25	2.12	6.19	6.38	8-1.38	9.5		4.6	4.5		4.88	3.56	0.44
5	14.75	2.88	7.31	7.75	8-1.63	11.5		5.69	5.56		6.12	4.12	0.44
6	15.5	3.25	8.5	9	12-1.50	12.5		6.75	6.63		6.75	4.69	0.5
8	19	3.62	10.63	11.5	12-1.75	15.5		8.75	8.63		8.38	5.62	0.5
10	23	4.25	12.75	14.5	12-2.00	19		10.92	10.75		10	7	0.5
12	26.5	4.88	15	17.75	16-2.12	22.5		12.92	12.75		11.12	8.62	0.5
14	29.5	5.25	16.25	19.5	16-2.38	25		14.18	14		11.75	9.5	0.5
16	32.5	5.75	18.5	21.75	16-2.63	27.75		16.19	16		12.25	10.25	0.5
18	36	6.38	21	23.5	16-2.88	30.5		18.2	18		12.88	10.88	0.5
20	38.75	7	23	25.25	16-3.12	32.75		20.25	20		14	11.5	0.5
24	46	8	27.25	30	16-3.63	39		24.25	24		16	13	0.5

Class 2500 Forged Flange Dimensions

Nom. Pipe Size	O	T	R	X	#/Dia of Holesa	Bolt Circle Dia	B3	H	L	L2	L3	r	C	Thr
½	5.25	1.19	1.38	1.69	4-0.88	3.5	0.9	0.84	1.56	2.88	1.56	0.12	0.93	1.12
¾	5.5	1.25	1.69	2	4-0.88	3.75	1.11	1.05	1.69	3.12	1.69	0.12	1.14	1.25
1	6.25	1.38	2	2.25	4-1.00	4.25	1.38	1.32	1.88	3.5	1.88	0.12	1.41	1.38
1¼	7.25	1.5	2.5	2.88	4-1.12	5.13	1.72	1.66	2.06	3.75	2.06	0.19	1.75	1.5
1½	8	1.75	2.88	3.12	4-1.25	5.75	1.97	1.9	2.38	4.38	2.38	0.25	1.99	1.75
2	9.25	2	3.63	3.75	8-1.12	6.75	2.46	2.38	2.75	5	2.75	0.31	2.5	2
2½	10.5	2.25	4.13	4.5	8-1.25	7.75	2.97	2.88	3.12	5.62	3.12	0.31	3	2.25
3	12	2.62	5	5.25	8-1.38	9	3.6	3.5		6.62	3.62	0.38
4	14	3	6.19	6.5	8-1.63	10.75	4.6	4.5		7.5	4.25	0.44
5	16.5	3.62	7.31	8	8-1.88	12.75	5.69	5.56		9	5.12	0.44
6	19	4.25	8.5	9.25	8-2.12	14.5	6.75	6.63		10.75	6	0.5
8	21.75	5	10.63	12	12-2.12	17.25	8.75	8.63		12.5	7	0.5
10	26.5	6.5	12.75	14.75	12-2.63	21.25	10.92	10.75		16.5	9	0.5
12	30	7.25	15	17.38	12-2.88	24.38	12.92	12.75		18.25	10	0.5

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Forged Flanges in Dubai, UAE

Jinay Metals, one of the leading suppliers of Forged Flanges in Dubai, UAE, offers a wide selection of high-quality flanges suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.

Copper Nickel Forged Flanges Price List in West Midland, Copper Nickel Forged Flanges Supplier in Sharjah, Duplex Steel Forged Flanges Dealer in Jebel Ali, Alloy Steel Forged Flanges Supplier in Ajman, Carbon Steel Forged Flanges Exporter in Dubai, ANSI B16.5 Alloy Steel Forged Flanges Size Chart, Monel Forged Flanges Price in Jebel Ali, Super Duplex Steel Forged Flanges Thickness, Inconel Forged Flanges Supplier in West Midland, Carbon Steel Forged Flanges Stockist in UAE, Titanium Forged Flanges Exporter in Sharjah

Types of Forged Flanges

Are Custom Sizes Available for Forged Flanges?

Yes, we provide Forged Flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored flanges solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

Monel Forged Flanges Size Chart, Stainless Steel Forged Flanges Price in Ajman, Duplex Steel Forged Flanges Weight Chart, Alloy Steel Forged Flanges Supplier in Al Ain, Incoloy Forged Flanges Stockist in Dubai, Inconel Forged Flanges Supplier in West Midland, Copper Nickel Forged Flanges Price List in Ajman, Alloy Steel Forged Flanges Exporter in UAE, Carbon Steel Forged Flanges Exporter in Ras Al Khaimah, Titanium Forged Flanges Exporter in West Midland, ANSI B16.5 Monel Forged Flanges in Dubai

Forged Flanges are widely used in industries that require high strength, durability, and harsh environment resistance. They are particularly useful for high-pressure and high-temperature piping systems in oil and gas, petrochemical, power generation, marine, and chemical industries. These flanges act as a connection point for pipes, valves, pumps, and other equipment while providing leak-proof and secure connections. Their excellent mechanical properties also make Forged Flanges well-suited for steam, gas, and corrosive fluids. Forged Flanges are also commonly used in refineries, offshore platforms, and other construction projects that demand reliability and long service life.
