Known for providing premium industrial flange solutions that satisfy global standards, Jinay Metals is a top manufacturer and supplier of SABS / SANS 1123 flanges in Dubai, United Arab Emirates. A wide selection of SABS / SANS 1123 flanges appropriate for various applications in the petrochemical, construction, oil, and gas sectors are available from Jinay Metals, which is dedicated to precision engineering and client satisfaction. To guarantee longevity, dependability, and superior performance under trying circumstances, our products are made with premium-grade materials and cutting-edge technology. For excellent flange solutions in the UAE and elsewhere, Jinay Metals is a reliable partner.
SABS / SANS 1123 flanges are manufactured from high-quality carbon steel, stainless steel, or alloy steel, depending on application requirements. The typical composition includes carbon (0.20–0.30%), manganese (0.60–1.00%), silicon (0.15–0.35%), and trace amounts of sulfur and phosphorus. These flanges exhibit excellent mechanical properties, including a tensile strength of 410–580 MPa, yield strength of 250 MPa (minimum), and elongation of 20%. Designed for durability and strength, SABS / SANS 1123 flanges ensure reliable performance under high pressure and temperature conditions in industrial systems.
| Specifications | SABS 1123 Flanges |
|---|---|
| SABS Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| ASME B16.5 SABS Flange size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| SABS Flange Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| SABS Flange Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| SABS Flange Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| SABS Flange Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| SABS Flange Standard SABS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Most common types of SABS Flanges |
|

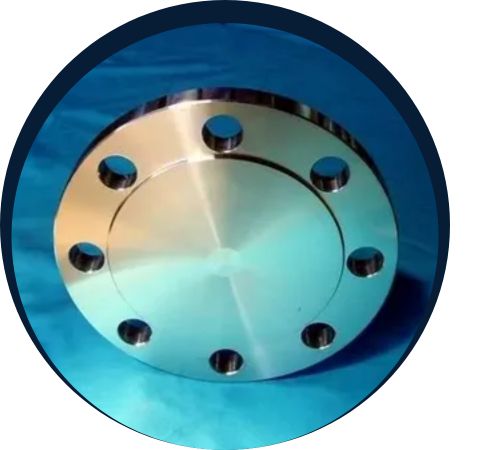

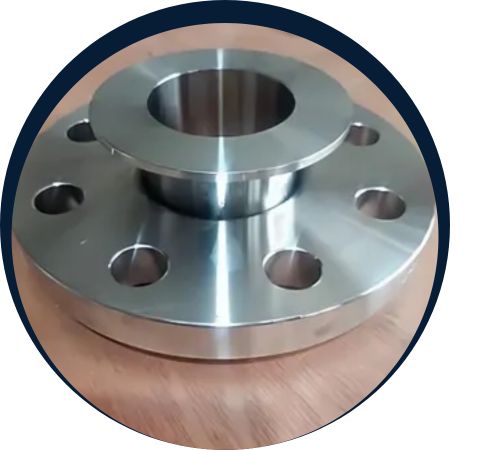

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| SABS Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|

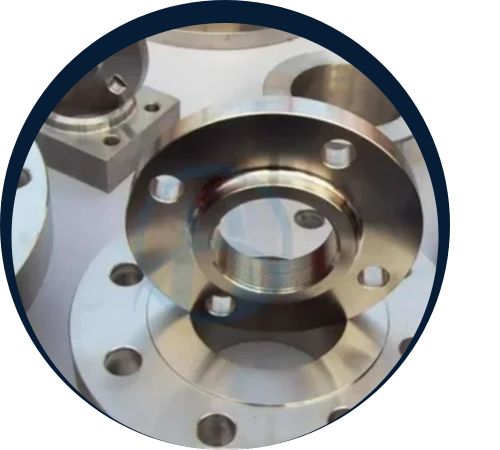

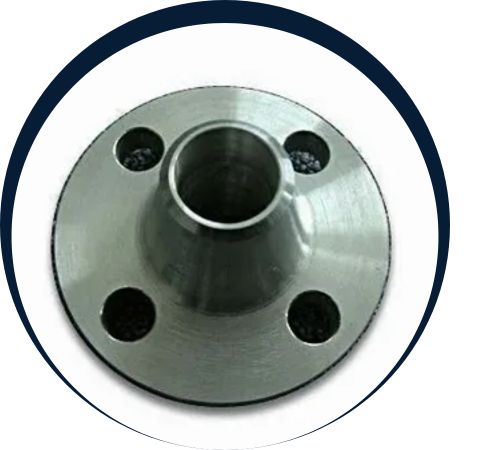

| Special design | As per your drawing AS, ANSI, BS, DIN and SABS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations SABS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Specialized manufacturer of |
|
| Test | Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | West Europe /Indian / USA / Japan / Korean |
| SABS 1123 Flanges Standard | ANSI DIN, GOST, SABS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, SABS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Key markets and industries for SABS Flange |
|
| Export to | Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc |
| SABS 1123 Flanges Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Blind Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These Flanges are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise. Jinay Metals providing reliable and high-performance SABS / SANS 1123 FLANGE tailored to meet your specific operational and project requirements.
| Nominal Bore 15 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600/3 | 80mm | 55mm | 4 | M10 | 11mm | 10mm |
| SABS1123-1000/3 | 95mm | 65mm | 4 | M12 | 14mm | 10mm |
| SABS1123-1600/3 | 95mm | 65mm | 4 | M12 | 14mm | 10mm |
| SABS1123-2500/3 | 95mm | 65mm | 4 | M12 | 14mm | 14mm |
| SABS1123-4000/3 | 95mm | 65mm | 4 | M12 | 14mm | 14mm |
| Nominal Bore 20 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 90mm | 65mm | 4 | M10 | 11mm | 10mm |
| SABS1123-1000 | 105mm | 75mm | 4 | M12 | 14mm | 10mm |
| SABS1123-1600 | 105mm | 75mm | 4 | M12 | 14mm | 10mm |
| SABS1123-2500 | 105mm | 75mm | 4 | M12 | 14mm | 14mm |
| SABS1123-4000 | 105mm | 75mm | 4 | M12 | 14mm | 14mm |
| Nominal Bore 25 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 100mm | 75mm | 4 | M10 | 11mm | 10mm |
| SABS1123-1000 | 115mm | 85mm | 4 | M12 | 14mm | 10mm |
| SABS1123-1600 | 115mm | 85mm | 4 | M12 | 14mm | 10mm |
| SABS1123-2500 | 115mm | 85mm | 4 | M12 | 14mm | 16mm |
| SABS1123-4000 | 115mm | 85mm | 4 | M12 | 14mm | 16mm |
| Nominal Bore 32 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 120mm | 90mm | 4 | M12 | 14mm | 10mm |
| SABS1123-1000 | 140mm | 100mm | 4 | M16 | 18mm | 10mm |
| SABS1123-1600 | 140mm | 100mm | 4 | M16 | 18mm | 10mm |
| SABS1123-2500 | 140mm | 100mm | 4 | M16 | 18mm | 18mm |
| SABS1123-4000 | 140mm | 100mm | 4 | M16 | 18mm | 18mm |
| Nominal Bore 40 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 130mm | 100mm | 4 | M12 | 14mm | 10mm |
| SABS1123-1000 | 150mm | 110mm | 4 | M16 | 18mm | 10mm |
| SABS1123-1600 | 150mm | 110mm | 4 | M16 | 18mm | 10mm |
| SABS1123-2500 | 150mm | 110mm | 4 | M16 | 18mm | 20mm |
| SABS1123-4000 | 150mm | 110mm | 4 | M16 | 18mm | 20mm |
| Nominal Bore 50 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 140mm | 110mm | 4 | M12 | 14mm | 10mm |
| SABS1123-1000 | 165mm | 125mm | 4 | M16 | 18mm | 10mm |
| SABS1123-1600 | 165mm | 125mm | 4 | M16 | 18mm | 12mm |
| SABS1123-2500 | 165mm | 125mm | 4 | M16 | 18mm | 20mm |
| SABS1123-4000 | 165mm | 125mm | 4 | M16 | 18mm | 20mm |
| Nominal Bore 65 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 160mm | 130mm | 4 | M12 | 14mm | 10mm |
| SABS1123-1000 | 185mm | 145mm | 4 | M16 | 18mm | 12mm |
| SABS1123-1600 | 185mm | 145mm | 4 | M16 | 18mm | 12mm |
| SABS1123-2500 | 185mm | 145mm | 8 | M16 | 18mm | 22mm |
| SABS1123-4000 | 185mm | 145mm | 8 | M16 | 18mm | 22mm |
| Nominal Bore 80 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 190mm | 150mm | 4 | M16 | 18mm | 10mm |
| SABS1123-1000 | 200mm | 160mm | 8 | M16 | 18mm | 12mm |
| SABS1123-1600 | 200mm | 160mm | 8 | M16 | 18mm | 14mm |
| SABS1123-2500 | 200mm | 160mm | 8 | M16 | 18mm | 22mm |
| SABS1123-4000 | 200mm | 160mm | 8 | M16 | 18mm | 22mm |
| Nominal Bore100 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 210mm | 170mm | 4 | M16 | 18mm | 10mm |
| SABS1123-1000 | 220mm | 180mm | 8 | M16 | 18mm | 12mm |
| SABS1123-1600 | 220mm | 180mm | 8 | M16 | 18mm | 14mm |
| SABS1123-2500 | 235mm | 190mm | 8 | M20 | 22mm | 25mm |
| SABS1123-4000 | 235mm | 190mm | 8 | M20 | 22mm | 25mm |
| Nominal Bore150 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 240mm | 200mm | 8 | M16 | 18mm | 12mm |
| SABS1123-1000 | 250mm | 210mm | 8 | M16 | 18mm | 14mm |
| SABS1123-1600 | 250mm | 210mm | 8 | M16 | 18mm | 16mm |
| SABS1123-2500 | 270mm | 220mm | 8 | M24 | 26mm | 28mm |
| SABS1123-4000 | 270mm | 220mm | 8 | M24 | 26mm | 28mm |
| Nominal Bore200 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 265mm | 225mm | 8 | M16 | 18mm | 12mm |
| SABS1123-1000 | 285mm | 240mm | 8 | M20 | 22mm | 16mm |
| SABS1123-1600 | 285mm | 240mm | 8 | M20 | 22mm | 18mm |
| SABS1123-2500 | 300mm | 250mm | 8 | M24 | 26mm | 30mm |
| SABS1123-4000 | 300mm | 250mm | 8 | M24 | 26mm | 30mm |
| Nominal Bore250 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 320mm | 280mm | 8 | M16 | 18mm | 14mm |
| SABS1123-1000 | 340mm | 295mm | 8 | M20 | 22mm | 18mm |
| SABS1123-1600 | 340mm | 295mm | 12 | M20 | 22mm | 22mm |
| SABS1123-2500 | 360mm | 310mm | 12 | M24 | 26mm | 28mm |
| SABS1123-4000 | 375mm | 320mm | 12 | M24 | 26mm | 32mm |
| Nominal Bore300 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 375mm | 335mm | 12 | M16 | 18mm | 16mm |
| SABS1123-1000 | 395mm | 350mm | 12 | M20 | 22mm | 20mm |
| SABS1123-1600 | 405mm | 355mm | 12 | M24 | 26mm | 25mm |
| SABS1123-2500 | 425mm | 370mm | 12 | M24 | 26mm | 30mm |
| SABS1123-4000 | 450mm | 385mm | 12 | M30 | 33mm | 38mm |
| Nominal Bore500 | Flange Diameter | PCD | Bolts | Boltsize | Hole Size | Thickness |
| SABS1123-600 | 645mm | 600mm | 20 | M20 | 22mm | 25mm |
| SABS1123-1000 | 670mm | 620mm | 20 | M24 | 26mm | 32mm |
| SABS1123-1600 | 715mm | 650mm | 20 | M30 | 33mm | 40mm |
| SABS1123-2500 | 730mm | 660mm | 20 | M30 | 33mm | 50mm |
| SABS1123-4000 | 755mm | 670mm | 20 | M39 | 39mm | 70mm |
Jinay Metals, one of the leading suppliers of SABS / SANS 1123 FLANGE in Dubai, UAE, offers a wide selection of high-quality flanges suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide SABS / SANS 1123 FLANGE to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored flanges solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
SABS / SANS 1123 flanges are widely used in various industrial applications requiring secure and leak-proof pipe connections. They are commonly applied in oil and gas pipelines, petrochemical plants, power generation, water treatment, and construction industries. These flanges provide strong mechanical joints, enabling easy assembly, disassembly, and maintenance of piping systems. Their ability to withstand high pressure and temperature makes them ideal for steam, gas, and fluid transmission lines. In addition, SABS / SANS 1123 flanges are used in marine, HVAC, and fire protection systems, ensuring reliable performance and safety in critical operations.
