Home > Stainless Steel > Stainless Steel 347/347H Forged Fittings
Thaida is a well-respected manufacturer and supplier based in Thailand, known for its top-notch Stainless Steel 347/347H Forged Fittings that excel in high-temperature and corrosive settings. These fittings are crafted with precision to ensure they are durable, reliable, and resistant to intergranular corrosion, making them perfect for tough industrial applications. Thaida is committed to quality, ensuring that every product meets international standards through advanced manufacturing techniques and rigorous quality control. Their Stainless Steel 347/347H Forged Fittings are commonly found in industries like petrochemical, chemical processing, and power generation, where long-lasting performance, strength, and stability are crucial.
The composition of Stainless Steel 347/347H Forged Fittings primarily includes chromium and nickel, along with columbium (niobium) to stabilize the alloy and prevent carbide precipitation during welding and high-temperature use. The 347H variant has a higher carbon content, which enhances its strength and creep resistance at elevated temperatures. Mechanically, these fittings boast impressive tensile and yield strength, outstanding toughness, and excellent resistance to oxidation and corrosion, ensuring they perform reliably even in harsh conditions.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB

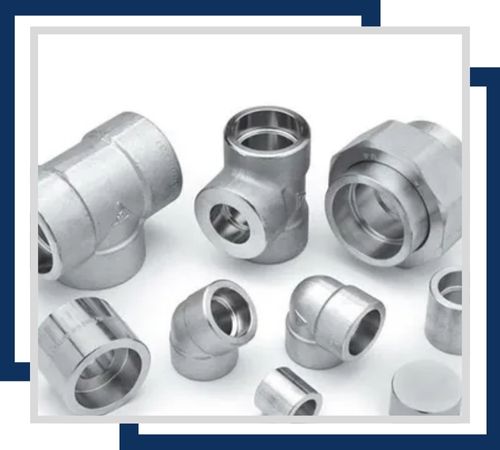

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 347/347H Forged Fittings from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Stainless Steel 347/347H Forged Fittings in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Stainless Steel 347/347H Forged Fittings to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
These fittings are widely utilized in sectors such as oil and gas, refineries, chemical processing, power generation, and aerospace. They are particularly suited for applications that involve constant exposure to high temperatures, like heat exchangers, furnace components, exhaust systems, and pressure vessels. Their remarkable resistance to intergranular corrosion and scaling makes them ideal for handling aggressive chemicals and gases. With their superior mechanical and thermal stability, these fittings guarantee a dependable service life and efficiency in critical industrial operations.
