Thaida stands out as a reliable manufacturer and supplier in Thailand, providing top-notch Stainless Steel 317/317L Forged Fittings that are built to perform exceptionally well in tough industrial settings. Renowned for their precision and durability, these fittings are crafted using cutting-edge techniques that guarantee outstanding resistance to corrosion, high temperatures, and pressure. Thaida’s Stainless Steel 317/317L Forged Fittings are perfect for sectors like chemical processing, oil and gas, and marine applications, where dependability and strength are essential. With a strong focus on quality and customer satisfaction, Thaida consistently delivers products that not only meet international standards but also surpass client expectations.
These Stainless Steel 317/317L Forged Fittings are primarily made up of chromium, nickel, and molybdenum, with the 317L variant featuring low carbon content to improve weldability and minimize carbide precipitation. This alloy is known for its excellent resistance to chemical attacks and pitting in acidic conditions. On the mechanical side, these fittings boast high tensile strength, impressive creep resistance, and good ductility, making them ideal for high-stress and high-temperature applications. The blend of mechanical toughness and corrosion resistance ensures they perform reliably in demanding industrial operations.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings

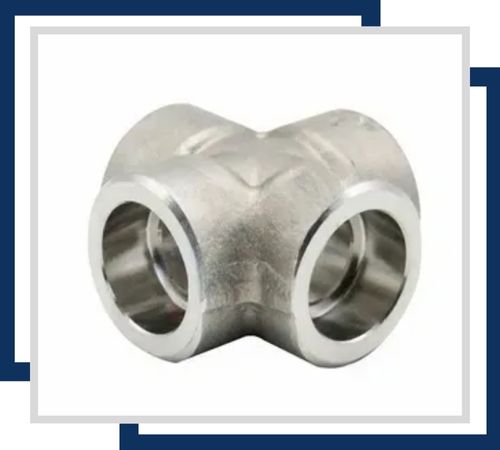

Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 317 / 317L UNS (S31700, S31703), DIN (1.4449, 1.4438)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 317/317L Forged Fittings from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Stainless Steel 317/317L Forged Fittings in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Stainless Steel 317/317L Forged Fittings to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
You’ll find Stainless Steel 317/317L Forged Fittings widely utilized across various industries, including petrochemical, power generation, pharmaceuticals, food processing, and marine engineering. Their remarkable resistance to oxidation, chemicals, and corrosive substances makes them perfect for managing aggressive fluids and gases. These fittings are often used in heat exchangers, pressure vessels, condensers, and piping systems, where both strength and corrosion resistance are crucial. Thanks to their versatility and durability, they provide safe, efficient, and long-lasting service in high-pressure and high-temperature industrial environments.
