Home > Stainless Steel >Stainless Steel 304/304LForged Fittings
Jinay Metals stands out as a top-notch manufacturer and supplier located in Dubai, UAE, with a focus on high-quality Stainless Steel 304/304L Forged Fittings. Renowned for its precision engineering and cutting-edge manufacturing methods, the company is dedicated to upholding international quality standards. These forged fittings are crafted to offer exceptional corrosion resistance, durability, and reliable performance even in high-pressure and high-temperature environments. Jinay Metals caters to a diverse array of industries, including petrochemical, oil & gas, power generation, and marine sectors, delivering dependable Stainless Steel 304/304L Forged Fittings that guarantee long-lasting, leak-proof connections in critical piping systems.
The Stainless Steel 304/304L Forged Fittings are composed of an austenitic stainless steel alloy that includes chromium (18–20%) and nickel (8–12%). The low carbon content in 304L helps reduce carbide precipitation, which boosts resistance to intergranular corrosion after welding. These fittings boast impressive mechanical properties, featuring a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of about 40%. They also provide excellent oxidation resistance, good toughness, and are easy to fabricate, making them perfect for both cryogenic and high-temperature applications.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS
| Mn | Si | P | S | Cr | Ni | N | ||
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304/304LForged Fittings from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Stainless Steel 304/304LForged Fittings in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Stainless Steel 304/304LForged Fittings to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.

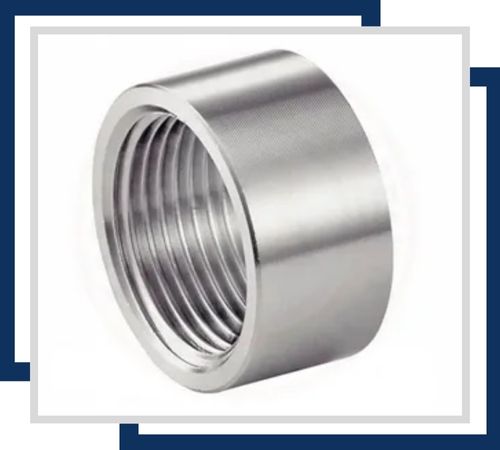

You’ll find Stainless Steel 304/304L Forged Fittings widely utilized in industries that demand robust, corrosion-resistant, and hygienic components. They’re particularly well-suited for chemical processing, food and beverage, water treatment, and pharmaceutical sectors. Moreover, they see extensive use in refineries, heat exchangers, and marine applications where moisture and chemical exposure are prevalent. Available in various configurations like elbows, tees, couplings, unions, and plugs, these fittings ensure efficient fluid handling, mechanical stability, and a long service life even in tough industrial settings.
