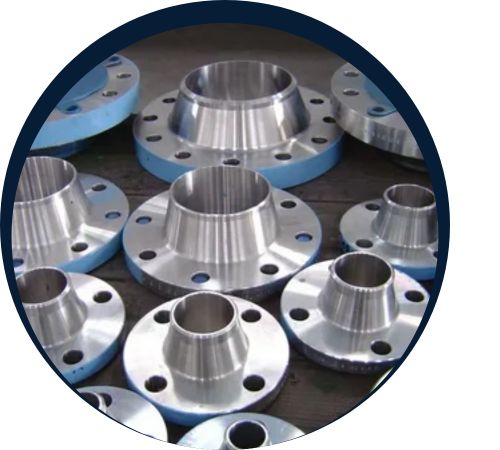

A well-known producer and supplier of stainless steel 304H flanges in Dubai, United Arab Emirates, Jinay Metals is renowned for producing long-lasting, high-quality goods that satisfy global standards. The oil and gas, petrochemical, power generation, and marine industries are just a few of the industrial applications for the extensive selection of flanges that Jinay Metals offers, all of which are characterized by their exceptional material quality and precision engineering. Our 304H stainless steel flanges are made to withstand high temperatures and corrosive conditions, guaranteeing their dependability and durability. In the UAE and beyond, Jinay Metals is a reputable brand in the stainless steel sector thanks to its dedication to quality.
Stainless Steel 304H Flanges are composed primarily of iron, with 18–20% chromium, 8–10.5% nickel, and a higher carbon content (0.04–0.10%), enhancing strength at elevated temperatures. They offer excellent oxidation resistance and corrosion resistance in various environments. The mechanical properties include a tensile strength of around 515 MPa, yield strength of 205 MPa, and elongation of 40%. With superior creep resistance and thermal stability, 304H flanges are ideal for high-temperature applications in heat exchangers, boilers, and pressure vessels.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 F316 Stainless Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304 Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Stainless Steel 304H Flanges in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Stainless Steel 304H flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Industries requiring high strength and corrosion and heat resistance frequently use stainless steel 304H flanges. They are perfect for heat exchangers, boilers, condensers, and pressure vessels because of their exceptional performance in high temperature settings. The petrochemical, power generation, chemical processing, oil and gas, and marine industries all make extensive use of them. 304H flanges are also appropriate for parts of furnaces, refinery units, and steam pipelines where oxidation resistance and durability are crucial. They are a popular option for both structural and industrial applications because of their superior toughness and weldability, which guarantee dependable performance.
