Jinay Metals is a leading manufacturer and supplier of premium-quality Inconel 601 Forged Fittings in Dubai, UAE, known for delivering reliable, high-performance solutions for demanding industrial applications. With a strong focus on precision engineering and internationally compliant manufacturing standards, we provide forged fittings that offer exceptional resistance to heat, corrosion, and oxidation. Serving sectors such as petrochemicals, power generation, oil and gas, and marine engineering, Jinay Metals ensures consistent product excellence, timely delivery, and competitive pricing. Our commitment to quality and customer satisfaction makes us a trusted partner for Inconel 601 Forged Fittings across the UAE and global markets.
Inconel 601 Forged Fittings are composed primarily of nickel, chromium, and iron, with added elements such as aluminum, carbon, and trace amounts of silicon and manganese to enhance performance. This alloy offers outstanding resistance to high-temperature oxidation and corrosion. Mechanically, Inconel 601 provides excellent tensile strength, good yield strength, and superior creep and rupture resistance, even at elevated temperatures. Its robust mechanical properties make it ideal for applications in heat-treating equipment, petrochemical processing, and furnace components, ensuring long-term durability and stability under extreme operating conditions.
| Standards | ASTM, ASME |
| Designation | B564, SB564 |
| Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Grade | Inconel 600 Forged Fittings. |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |

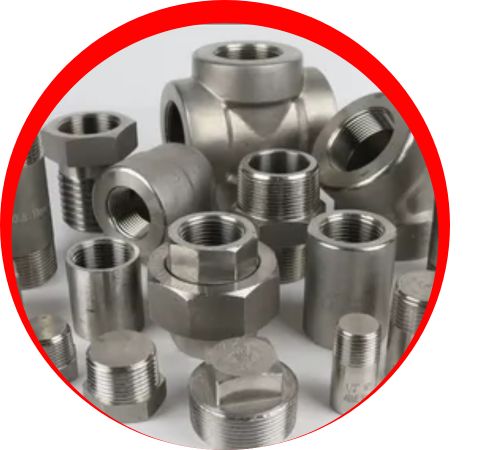

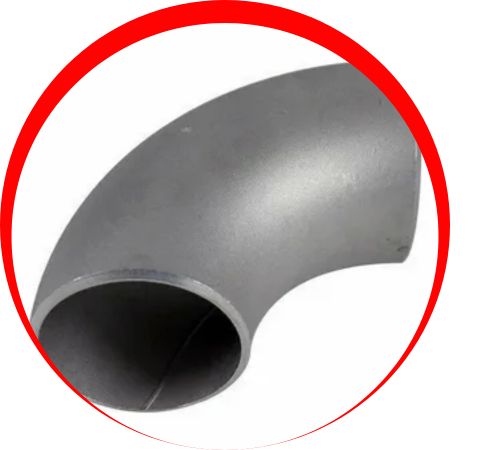

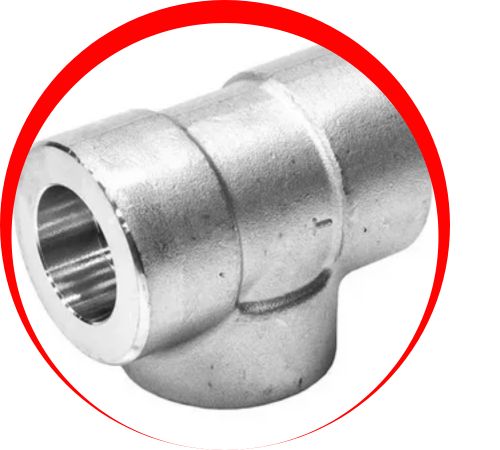

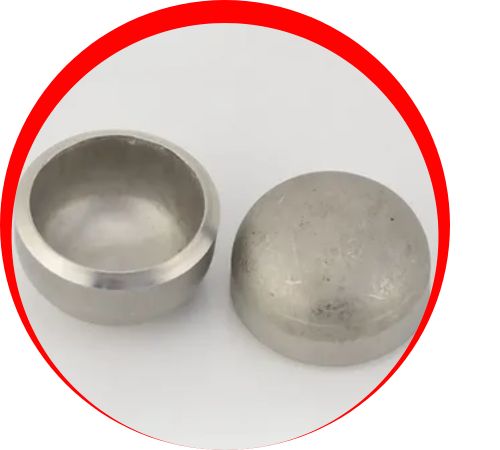

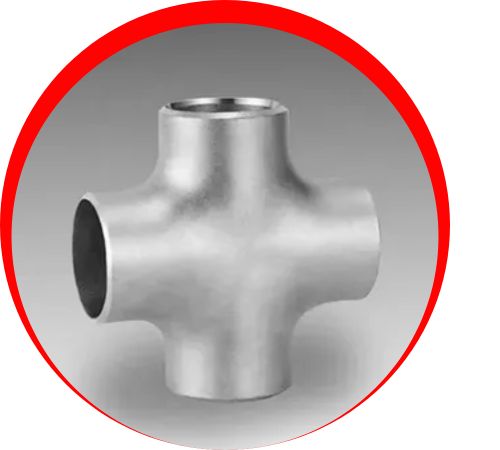

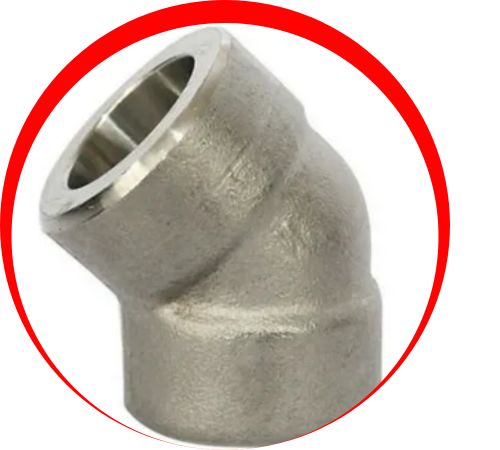

| Types of Forged Fittings | Elbow, Tee, Union, Cross, Swage Nipples, Coupling, CAP, Plug, Bush. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Inconel 601 Forged Fittings from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Inconel 601 Forged Fittings in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Inconel 601 Forged Fittings to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Inconel 601 Forged Fittings are widely used across industries requiring exceptional heat and corrosion resistance. They are commonly applied in furnace components, heat-treating equipment, and thermal processing systems due to their stability at high temperatures. In petrochemical and chemical plants, these fittings are used in piping systems handling corrosive media and high-temperature gases. They are also essential in power generation units, including gas turbines and exhaust systems, where strength and oxidation resistance are critical. Additionally, Inconel 601 fittings are utilized in aerospace, marine engineering, and pollution control equipment, ensuring reliable performance in demanding and corrosive environments.
