Jinay Metals is a leading manufacturer and supplier based in Dubai, UAE, specializing in high-performance Hastelloy flanges designed to withstand extreme corrosion in harsh chemical and high-temperature settings. The company is committed to delivering reliable flange solutions that ensure strength, stability, and leak-proof performance, even in the toughest operating conditions. With a focus on strict quality control and advanced production techniques, these flanges are crafted for precise dimensions and a long-lasting service life. Jinay Metals caters to a variety of industrial needs by providing Hastelloy flanges that are perfect for chemical processing, offshore operations, power generation, and other demanding applications where durability and resistance to aggressive media are crucial.
Hastelloy flanges are primarily made from nickel, molybdenum, and chromium, with small amounts of elements like tungsten, cobalt, and iron added based on the specific grade. This carefully balanced alloy composition offers outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking in both reducing and oxidizing environments. On the mechanical side, Hastelloy flanges boast high tensile strength, excellent fabricability, and impressive toughness at elevated temperatures. Their stability and ability to maintain structural integrity during thermal cycling and exposure to corrosive elements make them ideal for critical industrial systems.
| B564 Gr Flange Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Hastelloy Alloy Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Alloy Grade Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 Hastelloy Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME SB 564 Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SB564 Hastelloy Alloy Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| B564 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |

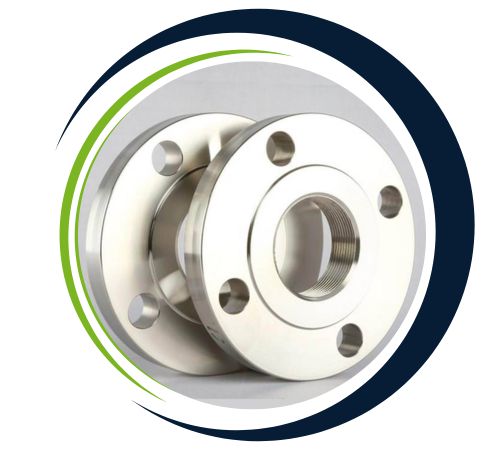

| Most common types of ASTM B564 Hastelloy Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SB564M Alloy Flange Production technique | Forged, Heat treated and machined |
| B564 Grade Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| ASME B564 Nickel Alloy Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B564 Alloy Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Alloy Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Hastelloy Alloy ASTM B564 Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ASTM B564 Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 Hastelloy Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SB564M Hastelloy Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Hastelloy Flanges from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Hastelloy Flanges in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Hastelloy Flanges to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
These flanges find their place in industries that demand high corrosion resistance, such as chemical processing, petrochemical production, and pharmaceutical manufacturing. They’re commonly used in reactors, heat exchangers, piping systems, and pressure vessels that handle acidic, chlorinated, or high-temperature media. In marine and offshore applications, these flanges are essential for equipment exposed to seawater, thanks to their resistance to localized corrosion. Power generation facilities also rely on Hastelloy flanges for high-temperature steam and gas systems. Their reliability, extended service life, and ability to thrive in harsh operating conditions make them vital for safety-critical and efficiency-focused applications.
