Jinay Metals, a top-notch manufacturer and supplier located in Dubai, UAE, specializes in high-quality Inconel 617 Forged Fittings that are built to excel in extreme temperatures and harsh, corrosive environments. These fittings are crafted to deliver outstanding mechanical strength, resistance to oxidation, and metallurgical stability, making them perfect for high-temperature applications. At Jinay Metals, every product is made with precision, cutting-edge technology, and rigorous quality standards. Inconel 617 Forged Fittings are relied upon across various industries, including petrochemical, aerospace, and power generation, thanks to their durability, reliability, and ability to thrive under tough operating conditions.
The composition of Inconel 617 Forged Fittings includes nickel, chromium, cobalt, and molybdenum, which together create a strong and corrosion-resistant alloy. This material showcases remarkable resistance to oxidation and carburization at elevated temperatures, along with impressive tensile and creep-rupture strength. The chromium content plays a key role in preventing oxidation, while molybdenum and cobalt enhance solid-solution strengthening. On the mechanical side, Inconel 617 boasts high fatigue resistance and maintains its structural integrity in both oxidizing and reducing environments.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

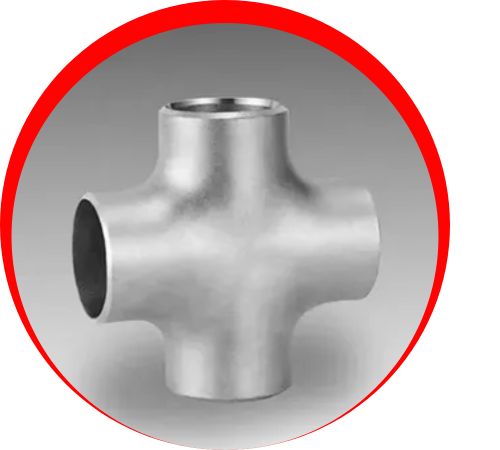

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Inconel 617 Forged Fittings from Jinay Metals ensures unmatched quality and long-lasting performance. These pipes are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Jinay Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.
Jinay Metals, one of the leading suppliers of Inconel 617 Forged Fittings in Dubai, UAE, offers a wide selection of high-quality pipes and tubes suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Jinay Metals has established itself as a trusted name for premium stainless steel products across the UAE.
Yes, we provide custom sizes of Inconel 617 Forged Fittings to match your exact project requirements. At Jinay Metals, our team is dedicated to delivering tailored piping and tubing solutions that ensure precision and reliability. For more information or personalized assistance, reach out to us at sales@jinaymetals.ae.
Inconel 617 Forged Fittings find extensive use in various applications, such as gas turbines, heat exchangers, furnace components, and petrochemical processing systems. They are particularly suited for settings that involve high temperatures and corrosive gases, like combustion and flue gas systems. In the power generation sector, these fittings are utilized in superheaters and reheater tubes due to their exceptional thermal stability. The aerospace industry also employs them in engine components and exhaust systems, where resistance to heat and pressure is crucial. Their unparalleled strength and corrosion resistance guarantee a long service life and dependable performance.
